> TOYOTA

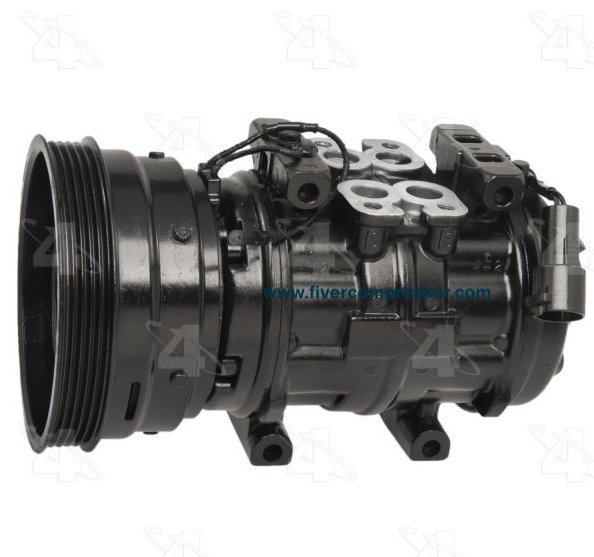

Toyota CAMRY/ VISTA/ AURION CV10/CV11 1983-1986 Toyota CARINA/CORONA CT150/ST150 1984-1988 10P15C A/C Compressor Assy 88320-32010,88320-12200,88320-12201, 88320-2046
- Compressor Type: 10P15C
- Groove: 5PK
- Coil Voltage:12V
- OE: 67368, 88320-32010,88320-12200,88320-12201, 88320-20460
- Product description: Each unit passes universal testing which includes vacuum, pressure, noise and performance; Charged with a lubricant to reduce internal friction promoting enhanced system performance and longevity.
Product introduction
Toyota CAMRY/ VISTA/ AURION CV10/CV11 1983-1986 Toyota CARINA/CORONA CT150/ST150 1984-1988 10P15C A/C Compressor Assy 88320-32010,88320-12200,88320-12201, 88320-20460
| Specifications | |
|---|---|
| Refrigerant Type | R-134A |
| Pulley Groove Quantity | 5 |
| Clutch Included | Yes |
| Belt Type | Serpentine |
| Coil Clock Position | Wire Lead |
| Compressor Type | 10P15C |
| Clutch Pulley Diameter | 5.250 |
| Coil Voltage | 12 |
| Mounting Type | Tangent Mount |
| Distance Between Mounting Holes | 3.09375 |
| Style | Piston |
| Switch / Sensor Desc | Speed Sensor |
| O-Ring A Number/Desc | [24613] / Green O-Ring |
| Mount Distance MM | 78.740 |
| Ctch Dia. MM Prmy | 133.350 |
|
|
|
| Oil Type | PAG 46 |
| Description | Compressors - Reman |
| Printed Foot Note | May Require use of OE Manifold |
| New or Reman | Remanufactured |
| Discharge Port Type | Pad Mount |
| O-Ring A Quantity | 4 |
| Suction Port Type | Pad Mount |
Applications:
TOYOTA
CAMRY/ VISTA/ AURION
Frame CV10 | Grade XE/Grade XT/Grade VF/Grade VL/ grade DLX/grade GL | ENGINE 1CTL | 08.1983 To 08.1985 |
Frame CV11 |Grade XE/Grade XT/Grade VF/Grade VL/grade GL | ENGINE 2CTL | 08.1985 To 07.1986 |
CARINA FF
CT150-AEMES | CT150-AEPES |Frame CT150 grade SE body 4D | ENGINE 2CL | 05.1984 To 04.1988 |
CT150-AEMFS | CT150-AEPFS |Frame CT150 grade SG body 4D | ENGINE 2CL | 05.1984 To 04.1988 |
ST150-AEMEL | Frame ST150 grade SE body 4D | ENGINE 1SILU | MTM | 05.1984 To 04.1988 | 5F |
ST150-AEPEL | Frame ST150 grade SE body 4D | ENGINE 1SILU | ATM | 05.1984 To 04.1988 | 4FC |
CORONA
CT150-TEMES | CT150-TEPES | Frame CT150 grade EXS body 4D | ENGINE 2CL | 10.1983 To 11.1987 |
CT150-TEMNS | CT150-TEPNS | Frame CT150 grade GX body 4D | ENGINE 2CL | 10.1983 To 11.1987 |
ST150-TEMEL | ST150-TEPEL | ST150-TLHES | ST150-TLPEL | Frame ST150 grade EXS body 4D | ENGINE 1SILU | 10.1983 To 11.1987 |
ST150-TEMGE | ST150-TEPGE | ST150-TLMGE | ST150-TLPGE | Frame ST150 grade EXA body 4D | ENGINE 1SELU | 10.1983 To 11.1987 |
ST150-TEMNL | ST150-TEPNL | ST150-TLHNS | ST150-TLMNL | ST150-TLPNL | Frame ST150 grade GX body 5D | ENGINE 1SILU | 10.1983 To 11.1987 |
ST150-TEMSE | ST150-TEPSE | ST150-TLMSE | Frame ST150 grade SX body 5D | ENGINE 1SELU | 10.1983 To 11.1987 |
ST150R-TEHNST | ST150R-TEMNST | ST150R-TLMNST | ST150R-TEHNST | ST150R-TEMNST | ST150R-TLMNST | Frame ST150 grade GL body LB/SED | ENGINE 1SL | 08.1985 To08.1986 |
Alternate/OEM Part Number(s): 67368,19192864, 8832032010, 883203201084, 8832032020, 8832032021, 8832032040, 8832032060, 8841032010, 88999331,67368,,88320-12200,88320-12201, 88320-20460
