AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Products A/C compressor
6PK · 12V
Compressor Assy Cooler; Auto A/C Compressor for Mazda 2 2011-2013;Compressor Assy, W/pulley
§ 01
Recorded against the compressor type and its OE cross-reference.
Compressor
Clutch and fitment
§ 02
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 03
§ 04

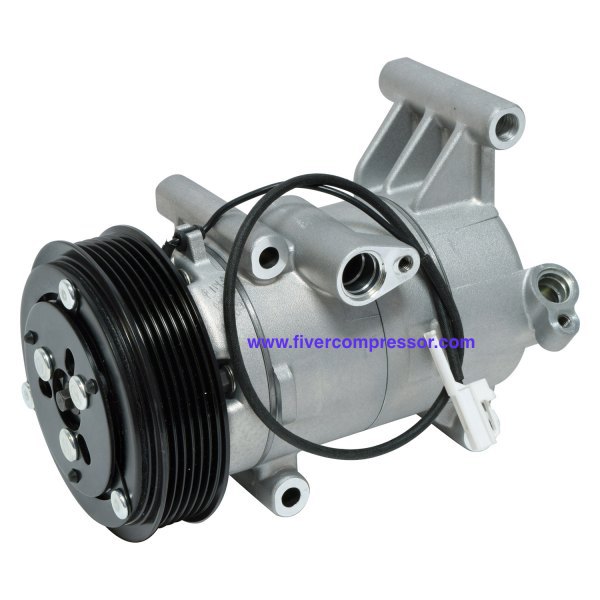

V09A1AD4AP Type 6 PK Compressor Assy, W/pulleyDR6161450for Mazda 2 2011-2013

| Specifications | |
|---|---|
| Clocking | 12 |
| Control Valve (Y/ N) | N |
| Diode (Y/ N) | N |
| Discharge Port (MM) | 14 |
| Gauge Line (MM) | 43 |
| Grooves | 6 |
| Pulley Diameter (MM) | 114 |
| Suction Port (MM) | 16.5 |
| Voltage | 12 |
2011 Mazda 2 All Models
2012 Mazda 2 All Models
2013 Mazda 2 All Models
OE: DR6161450
§ 05
OE 38800-PH3-013, 38800PH3013
OE 38800P00K01, 38810-P07-014, 38810-P07-024
OE 38800-PH3-003, 38800PH3003
OE 38800-PH1-003, 38800PH1003
