Toyota A/C compressor
Toyota COASTER AC Compressor Assy 447220-1482 447220-1030 447220-1310
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

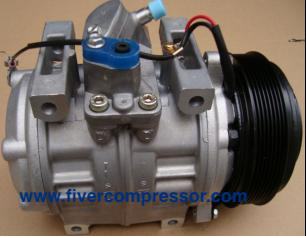

Part Name: Toyota COASTER AC Compressor Assy
OE:447220-1482 447220-1030 447220-1310
Applications: Coaster
Compressor Info:
Item No : WX-10049A
Car Name : Coaster
TYPE : 10P30C
Year model: 2000-
OEM No : 447220-1482/447220-1030/447220-1310
Clutch information : 177mm 7PK 24V
Oil type : PAG 46
Oil Quantity : 500ml
