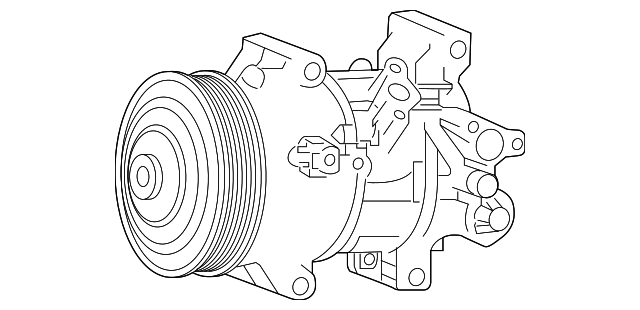

Toyota AC Compressor Assy 88310-42511, 8831042511 RAV4/VANGUARD ZSA44 2012-2018; SCION IM ZRE186 2015-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products A/C compressor

Toyota AC Compressor Assy 88310-42511, 8831042511 RAV4/VANGUARD ZSA44 2012-2018; SCION IM ZRE186 2015-2018

OE / Part number
88310-42511, 8831042511

Brand new Automobile A/C Compressor OE No.:88310-42511, 8831042511 Product Name:Toyota AC Compressor Assy Applications:RAV4/VANGUARD ZSA44 2012-2018 SCION IM ZRE186 2015-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / RAV4 A/C Compressor / SCION IM A/C Compressor / VANGUARD A/C CompressorISTA A/C Compressor
OE / Part number88310-42511, 8831042511
ApplicationApplications: RAV4/VANGUARD ZSA44 2012-2018

§ 03

Product details

OE No.:88310-42511, 8831042511
Product Name:Toyota AC Compressor Assy
Applications:RAV4/VANGUARD ZSA44 2012-2018
SCION IM ZRE186 2015-2018


ZSA44L-ANFGPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark G
ZSA44L-ANFMPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark M
ZSA44L-ANFXPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark X
ZSA44L-ANXGPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION CVT PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type A Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark G
ZSA44L-ANXMPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION CVT PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type A Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark M
ZSA44L-ANXXPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION CVT PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type A Vehicle Model RAV4 Driver's Position LHD Fuel Induction HTWVM Grade Mark X
ZSA44R-ANXGPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION CVT PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type A Vehicle Model RAV4 Driver's Position RHD Fuel Induction HTWVM Grade Mark G
ZSA44R-ANXMPW
Year 2012 - 2018
Sales region Europe Frame ZSA44 ENGINE 3ZRFAE TRANSMISSION CVT PRODUCT JPP DESTINATION EUR Model RAV4 From 12.2012 Gear Shift Type A Vehicle Model RAV4 Driver's Position RHD Fuel Induction HTWVM Grade Mark M
