Toyota A/C compressor

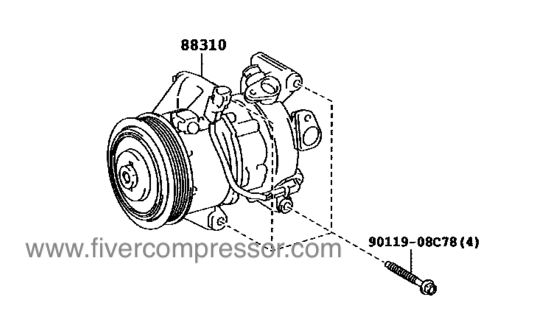

Toyota AC Compressor Assy 88310-0DA90, 883100DA90 YARIS ECHO VIOS LIMO KSP130 2014-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Toyota AC Compressor Assy 88310-0DA90, 883100DA90 YARIS ECHO VIOS LIMO KSP130 2014-2018

OE / Part number
88310-0DA90, 883100DA90

OE standard Quality Auto A/C Compressor OE No.:88310-0DA90, 883100DA90 Product Name:Toyota AC Compressor Assy Applications:YARIS/ ECHO/ VIOS/ LIMO KSP130 2014-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / YARIS A/C Compressor / VIOS A/C Compressor / LIMO A/C Compressor
OE / Part number88310-0DA90, 883100DA90
ApplicationApplications: YARIS/ ECHO/ VIOS/ LIMO KSP130 2014-2018

§ 03

Product details

OE No.:88310-0DA90, 883100DA90
Product Name:Toyota AC Compressor Assy
Applications:YARIS/ ECHO/ VIOS/ LIMO KSP130 2014-2018

KSP130L-CGMNKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 3D Model Mark N Driver's Position LHD
KSP130L-CGMRKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 3D Model Mark R Driver's Position LHD
KSP130L-CHMGKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark G Driver's Position LHD
KSP130L-CHMNKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark N Driver's Position LHD
KSP130L-CHMRKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark R Driver's Position LHD
KSP130R-CGMNKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 3D Model Mark N Driver's Position RHD
KSP130R-CGMRKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 3D Model Mark R Driver's Position RHD
KSP130R-CHMGKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark G Driver's Position RHD
KSP130R-CHMNKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark N Driver's Position RHD
KSP130R-CHMRKW
Year 2014 - 2018
Sales region Europe Frame KSP130 ENGINE 1KRFE TRANSMISSION MTM PRODUCT FRP From 07.2014 Gear Shift Type 5F No.of Doors 5D Model Mark R Driver's Position RHD
