FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Toyota A/C compressor

Toyota AC Compressor Assy 88310-02B50, 8831002B50 LEVIN/ CERES/ TRUENO/ MARINO NRE181 2016-2017
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Toyota AC Compressor Assy 88310-02B50, 8831002B50 LEVIN/ CERES/ TRUENO/ MARINO NRE181 2016-2017

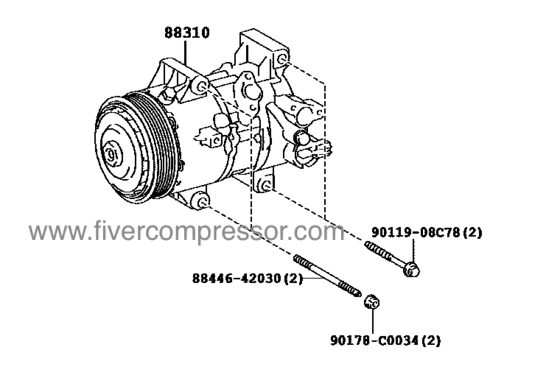

OE / Part number
88310-02B50, 8831002B50

Auto vehicle A/C Compressor Replacement OE No.: 88310-02B50, 8831002B50 Product Name:Toyota AC Compressor Assy Applications:LEVIN/ CERES/ TRUENO/ MARINO NRE181 2016-2017

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / LEVIN A/C CompressorEVIN A/C Compressorexus GS A/C Compressor / TRUENO A/C Compressor / MARINO A/C Compressor
OE / Part number88310-02B50, 8831002B50
ApplicationApplications: LEVIN/ CERES/ TRUENO/ MARINO NRE181 2016-2017

§ 03

Product details

OE No.: 88310-02B50, 8831002B50
Product Name:Toyota AC Compressor Assy
Applications:LEVIN/ CERES/ TRUENO/ MARINO NRE181 2016-2017


NRE181L-CEFEZC
Year 2016 - 2017
Sales region General Frame NRE181 body SED ENGINE 9NRFTS TRANSMISSION MTM Model LEVIN From 12.2016 To 06.2017 Gear Shift Type 6F No.of Doors 4D Vehicle Model Levin Model Mark E
NRE181L-CEFNZC
Year 2016 - 2017
Sales region General Frame NRE181 body SED ENGINE 9NRFTS TRANSMISSION MTM Model LEVIN From 12.2016 To 06.2017 Gear Shift Type 6F No.of Doors 4D Vehicle Model Levin Model Mark N
NRE181L-CEXEZC
Year 2016 - 2017
Sales region General Frame NRE181 body SED ENGINE 9NRFTS TRANSMISSION CVT Model LEVIN From 12.2016 To 06.2017 No.of Doors 4D Vehicle Model Levin Model Mark E
NRE181L-CEXNZC
Year 2016 - 2017
Sales region General Frame NRE181 body SED ENGINE 9NRFTS TRANSMISSION CVT Model LEVIN From 12.2016 To 06.2017 No.of Doors 4D Vehicle Model Levin Model Mark N
