Toyota A/C compressor

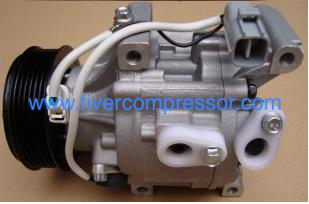

Toyota A/C Compressor 88310-02182/88310-1A580 /88310-1A523/88310-02180/ 88310-02320 /88310-1A582 for COROLLA /YARIS 1.6L
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Toyota A/C Compressor 88310-02182/88310-1A580 /88310-1A523/88310-02180/ 88310-02320 /88310-1A582 for COROLLA /YARIS 1.6L

OE / Part number
88310-02320, 88310-1A582, 88310-1A523, 88310-02180, 88310-02182, 88310-1A580

Toyota A/C Compressor 88310-02182/88310-1A580 /88310-1A523/88310-02180/ 88310-02320 /88310-1A582 for COROLLA /YARIS 1.6L

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / COROLLA A/C compressor / YARIS A/C Compressor
OE / Part number88310-02320, 88310-1A582, 88310-1A523, 88310-02180, 88310-02182, 88310-1A580
ApplicationApplications: COROLLA/YARIS 1.6 2001-2006

§ 03

Product details

Part Name: Toyota A/C Compressor

OE/ Cross reference: 88310-02182/88310-1A580 /88310-1A523/88310-02180/ 88310-02320 /88310-1A582

Applications: COROLLA/YARIS 1.6 2001-2006

Compressor Info:

Item No : WX-10003
Car Name : Corolla /Yaris 1.6
TYPE : SCSA06C
Year model : 2001-2006
OEM No : 88310-02182/88310-1A580 /88310-1A523/ 88310-02180/ 88310-02320 /88310-1A582

Clutch information : 90mm 6PK 12V
Oil type : PAG 46
Oil Quantity : 85ml
