Toyota A/C compressor

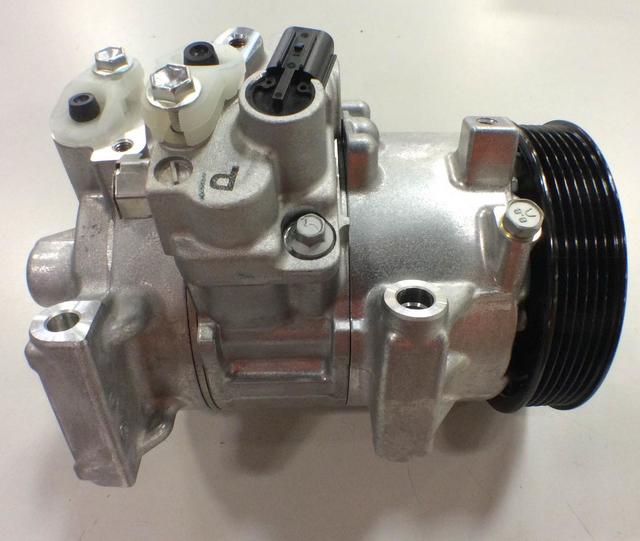

TSE14C Compressor Assembly with Pulley 88310-02710, 8831002710;88310-02711, 8831002711,8831068031 Toyota COROLLA and Toyota MATRIX
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

TSE14C Compressor Assembly with Pulley 88310-02710, 8831002710;88310-02711, 8831002711,8831068031 Toyota COROLLA and Toyota MATRIX

OE / Part number
88310-02710, 8831002710, 88310-02711, 8831002711, 8831068031, 4711023, CG447280-9060

Compresor de aire acondicionado automático de calidad estándar OE 8831002710, 8831002711, 8831068031

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelToyota A/C compressor / Auto A/C compressor / COROLLA A/C compressor / COROLLA MATRIX A/C Compressor
OE / Part number88310-02710, 8831002710, 88310-02711, 8831002711, 8831068031, 4711023, CG447280-9060
ApplicationApplications: COROLLA (ZRE142 2008-2013)

§ 03

Product details

TSE14C Compressor Assembly with Pulley 88310-02710, 8831002710;88310-02711, 8831002711,8831068031 Toyota COROLLA and Toyota MATRIX

OE No.:88310-02710, 8831002710;88310-02711, 8831002711, 8831068031,DENSO4711023
Applications:COROLLA (ZRE142 2008-2013)
COROLLA MATRIX (ZRE142 2008-2014)

Compressor Info:

Item No : WX-10001A
Car Name : Corolla/Matrix 1.8i
TYPE : TSE14C
Year model: 2011- 2013
OEM No : CG447280-9060/88310-02710, 8831002710;88310-02711, 8831002711, 8831068031,DENSO4711023

Clutch information : 122mm 6PK

ELECTRONIC CONTROL VALVE

Oil Type -Quantity : PAG 46 - 140ml
