Honda A/C compressor

Type TRSE09 TRSE09 A/C Compressor 38800-RX0-A01,38800-R5B-A02,38900R5AA02 for Honda Civic Si 2.4L 2012-2015 for Honda CRV EX, EX-L, LX 2.4L 4Cyl… 7PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

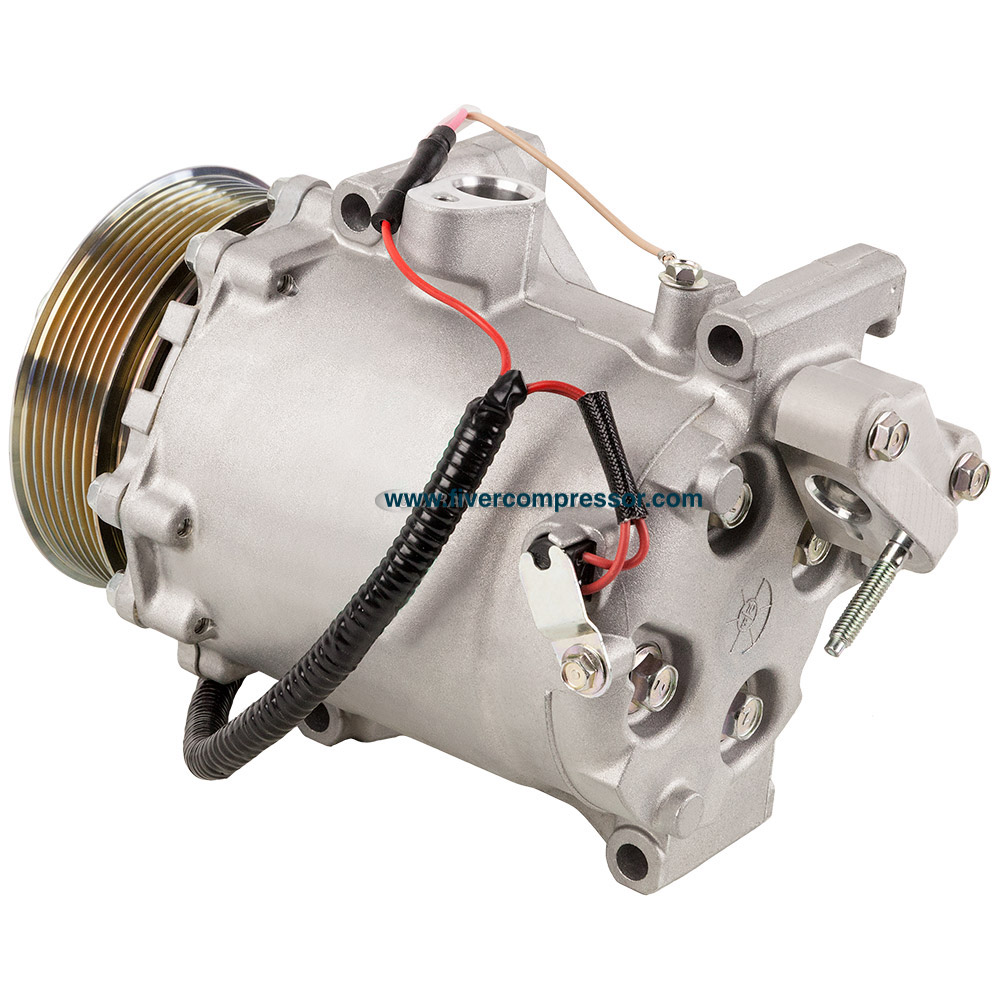

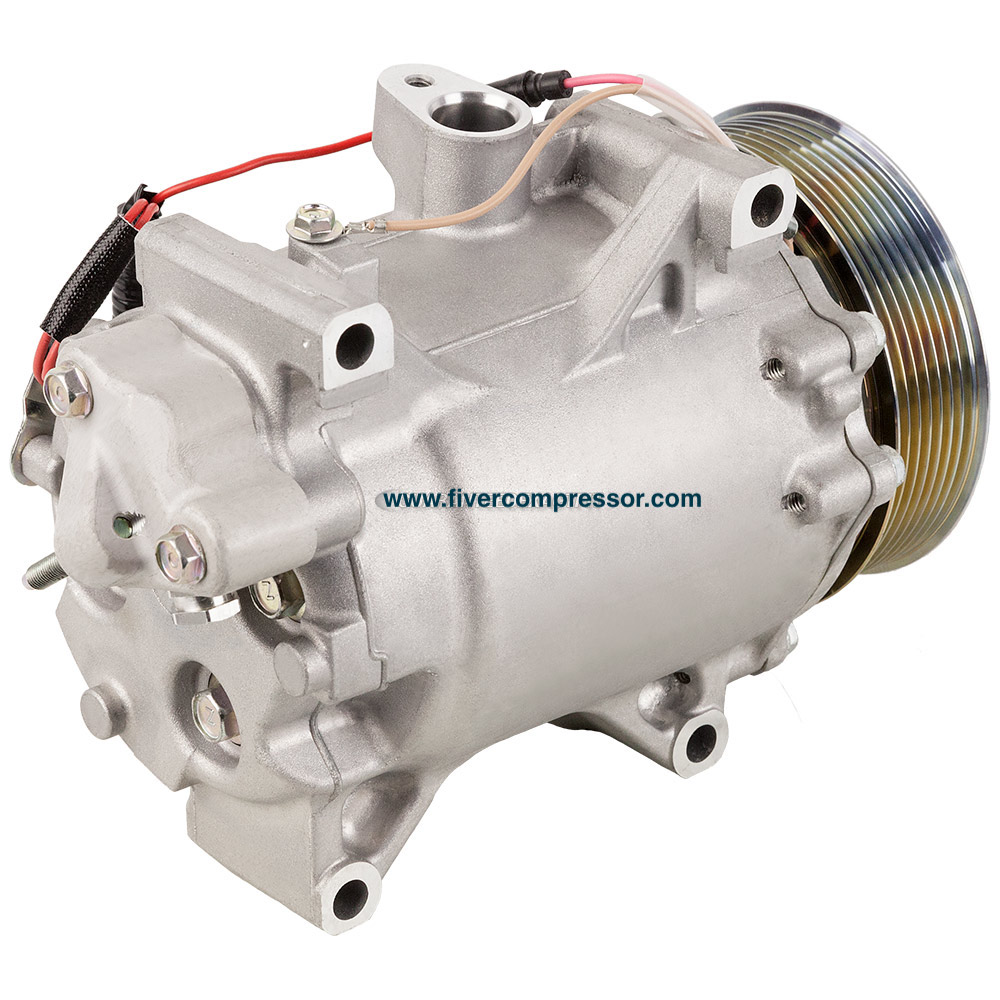

Honda TRSE09 A/C compressor

TRSE09 A/C Compressor 38800-RX0-A01,38800-R5B-A02,38900R5AA02 for Honda Civic Si 2.4L 2012-2015 for Honda CRV EX, EX-L, LX 2.4L 4Cyl 2012-2014

OE / Part number
38800-RX0-A01, 38800-R5B-A02, 38900-R5A-A02, 38800RX0A01, 38800R5BA02, 38900R5AA02

A/C Compressor for Honda Civic Si 2.4L 2012-2015; Honda CR-V EX/EX-L/LX 2.4L 2012-2014; China A/C Compressor manufacturer, Auto A/C Compressor Repair

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRSE09
Pulley Groove7PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRSE09
Pulley Groove7PK
Coil Voltage12V
OE / Part number38800-RX0-A01, 38800-R5B-A02, 38900-R5A-A02, 38800RX0A01, 38800R5BA02, 38900R5AA02
ApplicationApplications: Year

§ 04

Product details

TRSE09 A/C Compressor 38800-RX0-A01,38800-R5B-A02,38900R5AA02 for Honda Civic Si 2.4L 2012-2015 for Honda CRV EX, EX-L, LX 2.4L 4Cyl 2012-2014

SPECTRA 0610239 Specifications
Suction Port Inside Diameter (MM)18.09
Discharge Port Inside Diameter (MM)15.49
Outer diameter (MM)121.33
Pulley Groove Quantity6
Mount Distance (MM)51.77/ 104.9
Boss Width (MM)112.93/ 104.9
Pulley Lip Diameter (MM)111
Pulley Ridge Diameter (MM)106.11


Applications:

Year MakeModelBody & TrimEngine & Transmission
2015 Honda Civic. Si2.4L L4 - Gas
2014 HondaCR-V EX, EX-L, LX 2.4L L4 - Gas
2014HondaCivicSi2.4L L4 - Gas
2013HondaCR-VEX, EX-L, LX2.4L L4 - Gas
2013HondaCivicSi2.4L L4 - Gas
2012HondaCR-VEX, EX-L, LX2.4L L4 - Gas
2012HondaCivicSi2.4L L4 - Gas

OE: 38800-RX0-A01,38800-R5B-A02,38900-R5A-A02,38800RX0A01,38800R5BA02,38900R5AA02
