Honda A/C compressor

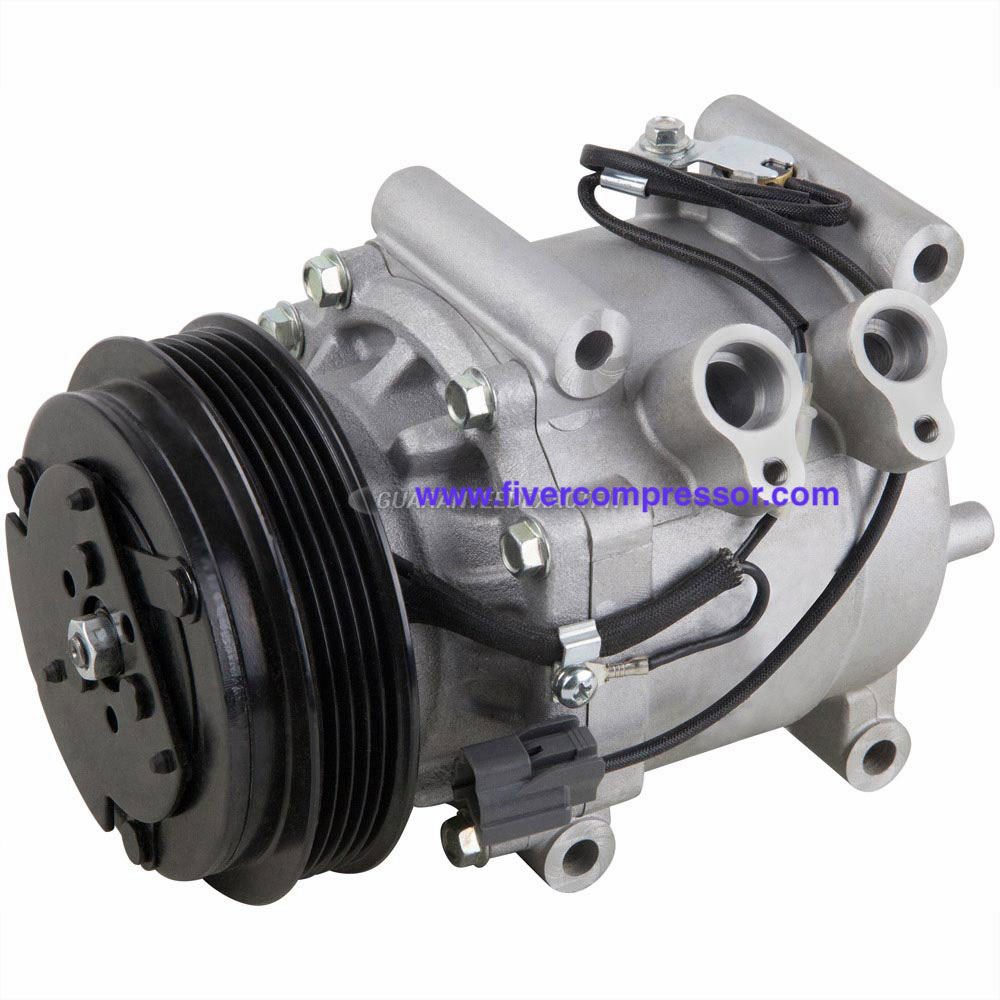

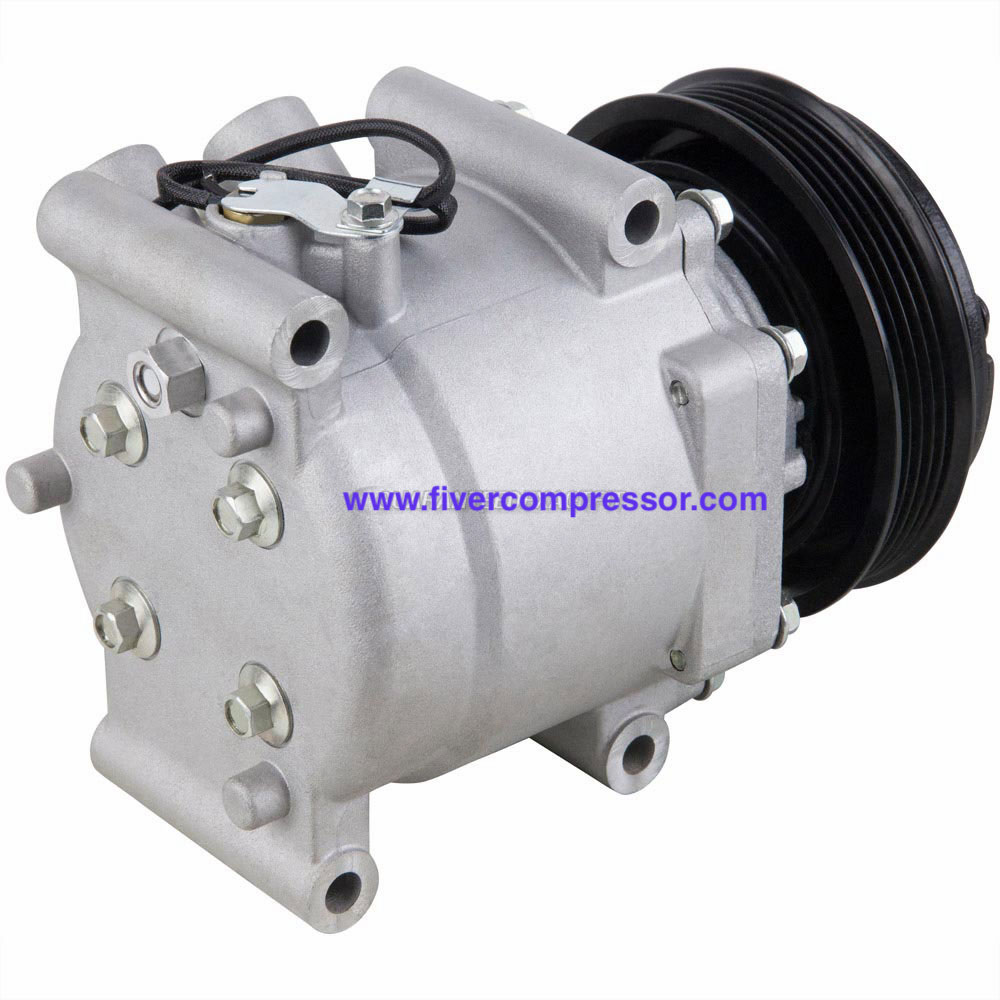

TRSA09 Type 5PK AC Compressor w/Clutch 38810-PHM-004 38810PHM004 for Honda Insight L3 1.0L 2000-2006 5PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Honda A/C compressor

TRSA09 Type 5PK AC Compressor w/Clutch 38810-PHM-004 38810PHM004 for Honda Insight L3 1.0L 2000-2006

OE / Part number
38810-PHM-004, 38810PHM004, 38800-PHM-004RM, 38800PHM004RM

A/C Compresso for Honda Insight L3 1L 2000-2006; Honda Insight AC Compressor; A/C Compressor manufacturer China

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Pulley Groove5PK
Coil Voltage12V

Clutch and fitment

modelCompressor Type; TRSA09

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Pulley Groove5PK
Coil Voltage12V
modelCompressor Type; TRSA09
OE / Part number38810-PHM-004, 38810PHM004, 38800-PHM-004RM, 38800PHM004RM
ApplicationModel: Compressor Type; TRSA09

§ 04

Product details

TRSA09 Type 5PK AC Compressor w/ Clutch 38810-PHM-004 38810PHM004 38800-PHM-004RM38800PHM004RM for Honda Insight L3 1.0L 2000-2006


 Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter4.6875 in

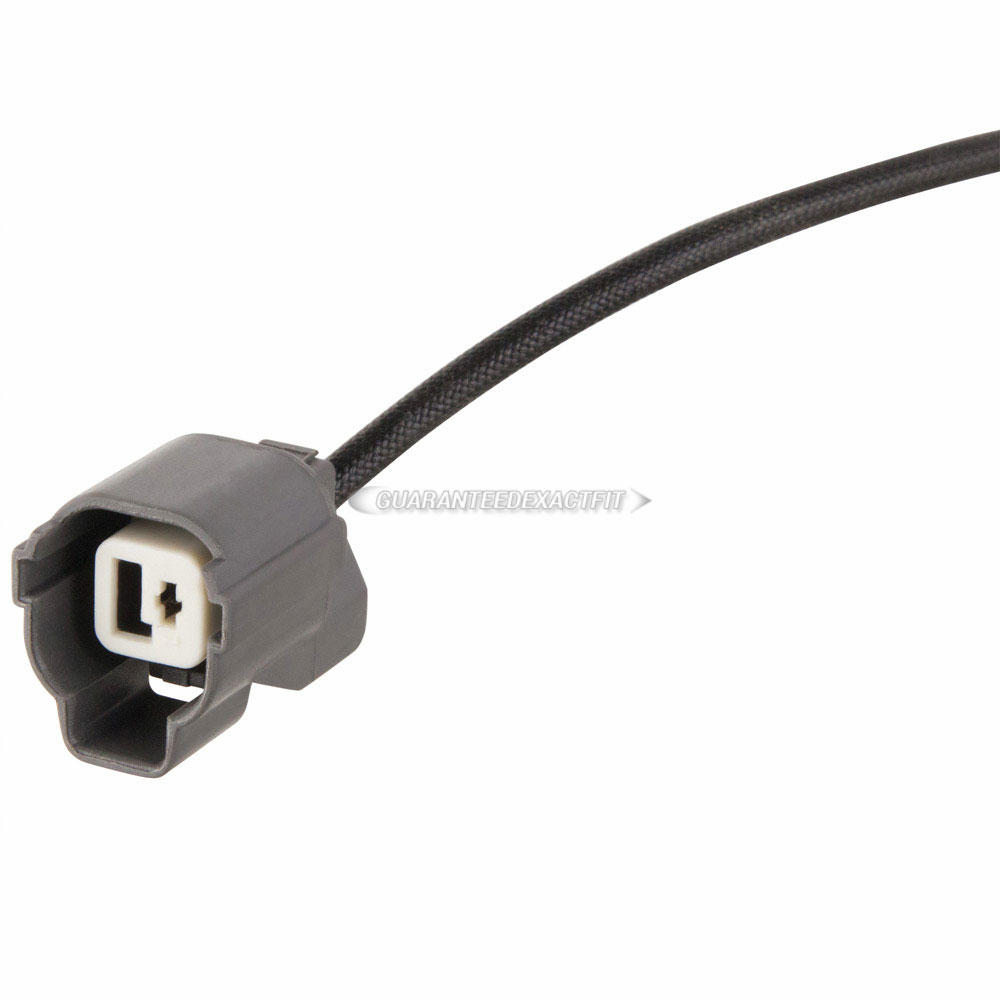

Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeTRSA090
Distance From Clutch To Mounting Flange2.015625 in
Mount Distance MM51.308 mm
Mounting Hardware?Not Included
Mounting TypeDirect Mount
New or RemanNew
O-Ring A Number/Desc[24661]
O-Ring A Quantity1
O-Ring B Number/Desc[24681]
O-Ring B Quantity1
O-Ring C Number/DescN/A
O-Ring C QuantityN/A
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM119.075 mm
Pulley Groove Quantity5
Pulley Lip Diameter4.6875 in
Pulley Ridge Diameter4.6875 in
Refrigerant TypeR134a


VEHICLE FITMENT
Year Make ModelBody & Trim Emission & Transmission
2006 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2005 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2004 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2003 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2002 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2001 Honda Insight3 Door DXKA 5MT, KA CVT L3 1.0L
2000 Honda Insight3 Door DXKA 5MT L3 1.0L

Alternated OE: 38810-PHM-004 38810PHM004 38800-PHM-004RM 38800PHM004RM
