AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
TOYOTA CAMRY VZV21/LEXUS ES250 1988-1988 A/C Compressor 88320-32091 88320-32090 — aftermarket A/C compressor OE 88320-32091 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

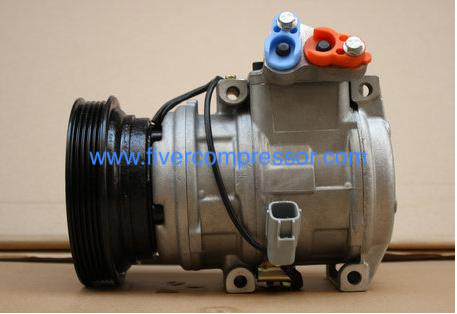

Compressor Info:
Item No : WX-10012
Car Name : Camry 2.2
TYPE : 10PA17C
Year model: 1994-2002
OEM No : 88320-32090/147200-4500 /147200-4490
CLUTCH : 133mm 5PK
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
