Honda A/C compressor

Type TR70 Sanden TR70 4 Grooves 38800-PK2-034, 38800PK2034 Honda Prelude 2.0L 1990-1992 AC Compressor Assy 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

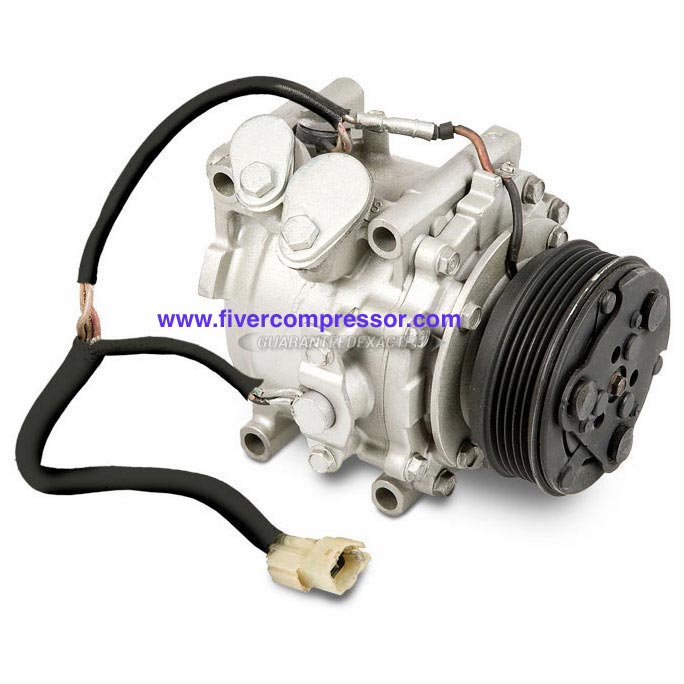

Honda TR70 A/C compressor

Sanden TR70 4 Grooves 38800-PK2-034, 38800PK2034 Honda Prelude 2.0L 1990-1992 AC Compressor Assy

OE / Part number
38800-PK2-034, 38800PK2034

HONDA Prelude A/C Compressor; Air-Con Compressor for Honda Prelude 2.0L 1990-1992; Auto Air Conditioning Compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTR70
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTR70
Pulley Groove4PK
Coil Voltage12V
OE / Part number38800-PK2-034, 38800PK2034

§ 04

Product details

Sanden TR70 4Grooves 38800-PK2-034, 38800PK2034 Honda Prelude 2.0L 1990-1992 AC Compressor Assy

Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter3.875 in
Coil Clock Position12
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeTR70
Discharge Port TypePad Mount
Distance From Clutch To Mounting Flange1.796875 in
Mount Distance MM45.720 mm
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanRemanufactured
O-Ring A Number/Desc[24681] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24661] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM98.298 mm
Pulley Groove Quantity5
Pulley Lip Diameter3.875 in
Pulley Ridge Diameter3.875 in
Refrigerant TypeR134a
Suction Port TypePad Mount
Switch IncludedHeat Sensor / Speed Sensor
Switch TypeHeat Switch And RPM Sensor
Terminal TypePin
TypeSanden/Sankyo


VEHICLE FITMENT

1990 Honda Prelude 2.0L
1991 Honda Prelude 2.0L
1992 Honda Prelude 2.0L



Alternated OE: 38800-PK2-034, 38800PK2034
