Honda A/C compressor

Type TRS090 Honda Civic A/C Compressor 1.5L/1.6L 1992-1993 Honda Del Sol Air Conditioning Compressor TRS090 Type 8800-P06-A01, 38810P06A01 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

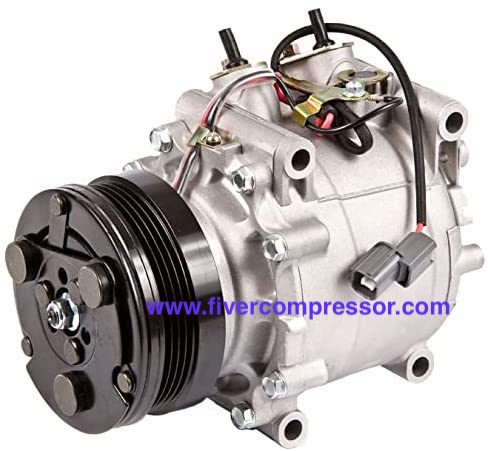

Honda TRS090 A/C compressor

Honda Civic A/C Compressor 1.5L/1.6L 1992-1993 Honda Del Sol Air Conditioning Compressor TRS090 Type 8800-P06-A01, 38810P06A01

OE / Part number
8800-P06-A01, 38810P06A01, 19192312, 38810P06A03, 38900P07024, 38924P07014, 88918925

Compressor Assembly for Honda Civic 1992-1993; Honda Del Sol Air Conditioning Compressor; Auto Air Conditioning Parts

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeTRS090
Pulley Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeTRS090
Pulley Groove4PK
Coil Voltage12V
OE / Part number8800-P06-A01, 38810P06A01, 19192312, 38810P06A03, 38900P07024, 38924P07014, 88918925

§ 04

Product details

Honda Civic A/C Compressor 1.5L/1.6L 1992-1993 Honda Del Sol Air Conditioning Compressor TRS090 Type 8800-P06-A01, 38810P06A01

Specifications
Clutch IncludedIncluded
Clutch Maximum Diameter3.750 in
Coil Clock Position1 Wire Lead
Coil Voltage12 2H
Compatible Refrigerant Oil TypePAG 46
Compressor TypeTRF090
Discharge Port TypeO-Ring
Distance From Clutch To Mounting Flange2.000 in
Mounting Hardware?Not Included
Mounting TypeTangent Mount
New or RemanRemanufactured
O-Ring A Number/Desc[24608] / Green O-Ring
O-Ring A Quantity1
O-Ring B Number/Desc[24610] / Green O-Ring
O-Ring B Quantity1
Oil FilledYes
Pulley Belt TypeSerpentine
Pulley Diameter MM95.250 MM
Pulley Groove Quantity4
Pulley Lip Diameter3.750 in
Pulley Ridge Diameter3.750 in
Refrigerant TypeR134a



VEHICLE FITMENT

Honda Civic 1.5L AT DX 1992, 1993
Honda Civic 1.5L AT LX 1992, 1993
Honda Civic 1.5L MT DX1992, 1993
Honda Civic 1.5L MT LX 1992, 1993
Honda Civic 1.6L VTEC AT EX 1992, 1993
Honda Civic 1.6L VTEC MT EX1992, 1993
Honda Civic Coupe 1.5L AT DX 1993
Honda Civic Coupe 1.5L MT DX1993
Honda Civic Coupe 1.6L VTEC AT EX 1993
Honda Civic Coupe 1.6L VTEC AT EX-S 1993
Honda Civic Coupe 1.6L VTEC MT EX 1993
Honda Civic Coupe 1.6L VTEC MT EX-S1993
Honda Civic Hatchback 1.5L AT DX 1992, 1993
Honda Civic Hatchback 1.5L MT CX 1992, 1993
Honda Civic Hatchback 1.5L MT DX1992, 1993
Honda Civic Hatchback 1.5L VTEC MT VX 1992, 1993
Honda Civic Hatchback 1.6L VTEC MT SI1992, 1993
Honda Del Sol 1.5L AT S 1993
Honda Del Sol 1.5L MT S 1993
Honda Del Sol 1.6L VTEC AT SI 1993
Honda Del Sol 1.6L VTEC MT SI 1993



Alternate/OEM Part Number(s): 19192312, 38810P06A01, 38810P06A03, 38900P07024, 38924P07014, 88918925
