AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
This Auto Air conditioning compressor 4710158, 8831033020, 8832033020 is for Lexus ES300 (MCV10_, VCV10_) 3.0L V6 1991-1996
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

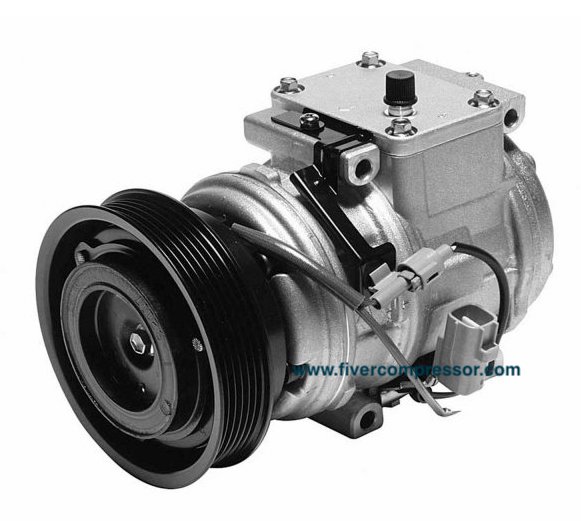

Compressor, air conditioning 4710158, 8831033020, 8832033020 for Lexus ES300 (MCV10_, VCV10_) 3.0L V6 1991-1996

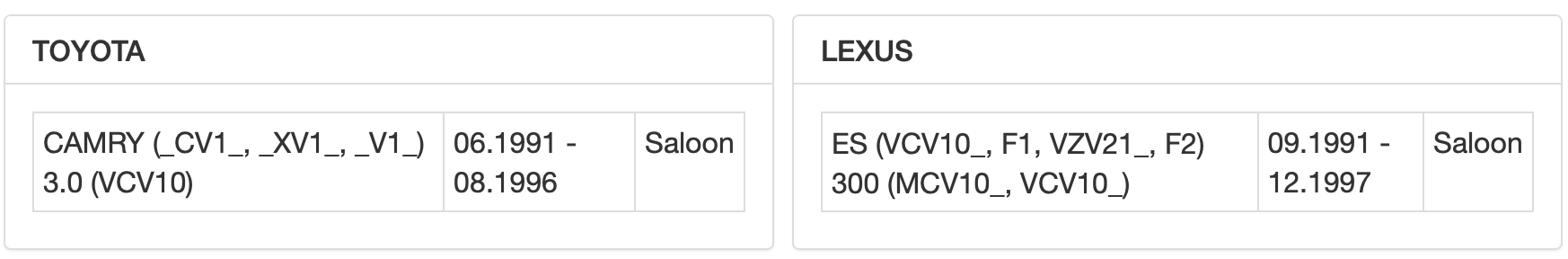

Applications:

Specifications:
| Manufacturer Restriction | DENSO |
| Compressor ID | 10PA17C |
| Voltage [V] | 12 |
| Compressor Oil | PAG 46 |
| Oil Fill Quantity [ml] | 180 |
| Pulleys | V-Ribbed Belt Pulley |
| Number of Ribs | 6 |
| Belt Pulley Ø [mm] | 125 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
