Toyota A/C compressor

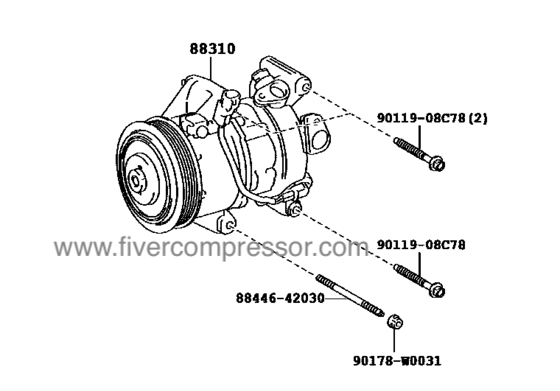

Compressor Assembly with W P 88310-0D440, 883100D440 VIOS NSP150 2013-2018 NSP151 2013-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compressor Assembly with W P 88310-0D440, 883100D440 VIOS NSP150 2013-2018 NSP151 2013-2018

OE / Part number
88310-0D440, 883100D440

Compressor Assembly with W P 88310-0D440, 883100D440 VIOS NSP150 2013-2018 NSP151 2013-2018 — aftermarket A/C compressor OE 88310-0D440 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / VIOS A/C Compressor
OE / Part number88310-0D440, 883100D440
ApplicationApplications: VIOS NSP150 2013-2018

§ 03

Product details

OE No.:88310-0D440, 883100D440

Product Name:Compressor Assembly with W P
Applications:VIOS NSP150 2013-2018

NSP151 2013-2018


NSP150L-BEMRKC
Year 2013 - 2018
Sales region General Frame NSP150 grade LO body SED ENGINE 4NRFE TRANSMISSION MTM Model VIOS (CHINA) From 11.2013 Gear Shift Type 5F No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWCNSP151L-BEMNKC
Year 2013 - 2018
Sales region General Frame NSP151 grade MID body SED ENGINE 5NRFE TRANSMISSION MTM Model VIOS (CHINA) From 11.2013 Gear Shift Type 5F No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWC
NSP151L-BEPGKC
Year 2013 - 2016
Sales region General Frame NSP151 grade HI body SED ENGINE 5NRFE TRANSMISSION ATM Model VIOS (CHINA) From 11.2013 To 09.2016 Gear Shift Type 4FC No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWC
NSP151L-BEPNKC
Year 2013 - 2016
Sales region General Frame NSP151 grade MID body SED ENGINE 5NRFE TRANSMISSION ATM Model VIOS (CHINA) From 11.2013 To 09.2016 Gear Shift Type 4FC No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWC
NSP151L-BEMRKC
Year 2014 - 2018
Sales region General Frame NSP151 grade LO body SED ENGINE 5NRFE TRANSMISSION MTM Model VIOS (CHINA) From 03.2014 Gear Shift Type 5F No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWC
NSP151L-BEPRKC
Year 2014 - 2016
Sales region General Frame NSP151 grade LO body SED ENGINE 5NRFE TRANSMISSION ATM Model VIOS (CHINA) From 03.2014 To 09.2016 Gear Shift Type 4FC No.of Doors 4D Vehicle Model VIOS Fuel Induction HTWC
