Toyota A/C compressor

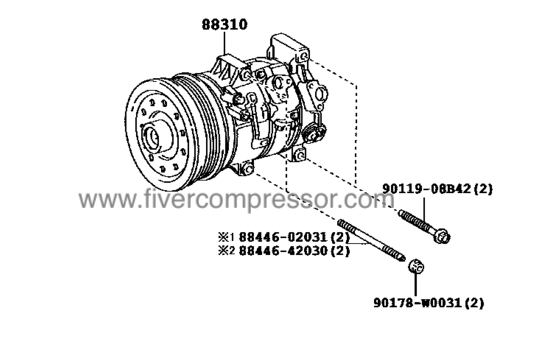

Compressor Assembly with W P88310-02780, 8831002780 AURIS/ COROLLA AVENSIS COROLLA VERSO
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compressor Assembly with W P88310-02780, 8831002780 AURIS/ COROLLA AVENSIS COROLLA VERSO

OE / Part number
88310-02780, 8831002780

Compressor Assembly with W P88310-02780, 8831002780 AURIS/ COROLLA AVENSIS COROLLA VERSO — aftermarket A/C compressor OE 88310-02780 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C compressor / COROLLA A/C Compressor / AVENSIS A/C Compressor / VERSO A/C Compressor
OE / Part number88310-02780, 8831002780
ApplicationApplications: AURIS/ COROLLA ZRE185 2012-2018

§ 03

Product details

OE No.:88310-02780, 8831002780
Product Name:Compressor Assembly with W P
Applications:AURIS/ COROLLA ZRE185 2012-2018
AVENSIS

ZRT270 2008-2018
ZRT271 2008-2018
ZRT272 2008-2018
COROLLA ZRE181 2013-2018

VERSO

ZGR20 2009-2018
ZGR21 2009-2018
