Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-12A81, 8831012A81 COROLLA ZRE172 2014-2018; ZRE173 2014-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-12A81, 8831012A81 COROLLA ZRE172 2014-2018; ZRE173 2014-2018

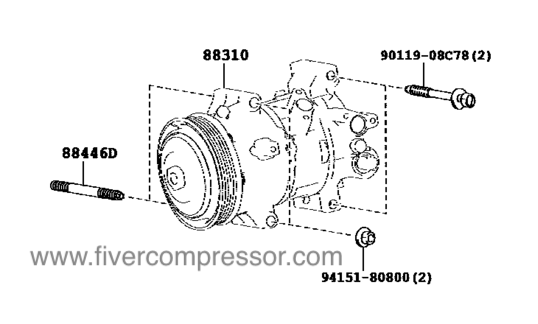

OE / Part number
88310-12A81, 8831012A81

Compresor de aire acondicionado automático de calidad estándar OE OE No.: 88310-12A81, 8831012A81 Product Name:Compresseur de climatisation pour véhicule Applications:COROLLA ZRE172 2014-2018 ZRE173 2014-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / COROLLA A/C compressor
OE / Part number88310-12A81, 8831012A81
ApplicationApplications: COROLLA

§ 03

Product details

OE No.: 88310-12A81, 8831012A81
Product Name:Compresseur de climatisation pour véhicule
Applications:COROLLA

ZRE172 2014-2018
ZRE173 2014-2018

ZRE172L-GEFEKK
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION MTM DESTINATION LA Model COROLLA (S.AMERICA) From 03.2014 Gear Shift Type 6F No.of Doors 4D Vehicle Model Corolla Model Mark E Driver's Position LHD Fuel Induction HTWC
ZRE172L-GEFNGG
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFBE TRANSMISSION MTM DESTINATION BZ Model COROLLA (S.AMERICA) From 03.2014 Gear Shift Type 6F No.of Doors 4D Vehicle Model Corolla Model Mark N Driver's Position LHD Fuel Induction HTWCF
ZRE172L-GEFNKK
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION MTM DESTINATION LA Model COROLLA (S.AMERICA) From 03.2014 Gear Shift Type 6F No.of Doors 4D Vehicle Model Corolla Model Mark N Driver's Position LHD Fuel Induction HTWC
ZRE172L-GEXEKK
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION CVT DESTINATION LA Model COROLLA (S.AMERICA) From 03.2014 No.of Doors 4D Vehicle Model Corolla Model Mark E Driver's Position LHD Fuel Induction HTWC
ZRE172L-GEXNGG
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFBE TRANSMISSION CVT DESTINATION BZ Model COROLLA (S.AMERICA) From 03.2014 No.of Doors 4D Vehicle Model Corolla Model Mark N Driver's Position LHD Fuel Induction HTWCF
ZRE172L-GEXNKK
Year 2014 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION CVT DESTINATION LA Model COROLLA (S.AMERICA) From 03.2014 No.of Doors 4D Vehicle Model Corolla Model Mark N Driver's Position LHD Fuel Induction HTWCZRE173L-GEXEGG
Year 2014 - 2018
Sales region General Frame ZRE173 body SED ENGINE 3ZRFBE TRANSMISSION CVT DESTINATION BZ Model COROLLA (S.AMERICA) From 03.2014 No.of Doors 4D Vehicle Model Corolla Model Mark E Driver's Position LHD Fuel Induction HTWCF
ZRE173L-GEXNGG
Year 2014 - 2018
Sales region General Frame ZRE173 body SED ENGINE 3ZRFBE TRANSMISSION CVT DESTINATION BZ Model COROLLA (S.AMERICA) From 03.2014 No.of Doors 4D Vehicle Model Corolla Model Mark N Driver's Position LHD Fuel Induction HTWCF
