Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-0R060, 883100R060;88310-0R061, 883100R061 RAV4/VANGUARD ASA44 2013-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-0R060, 883100R060;88310-0R061, 883100R061 RAV4/VANGUARD ASA44 2013-2018

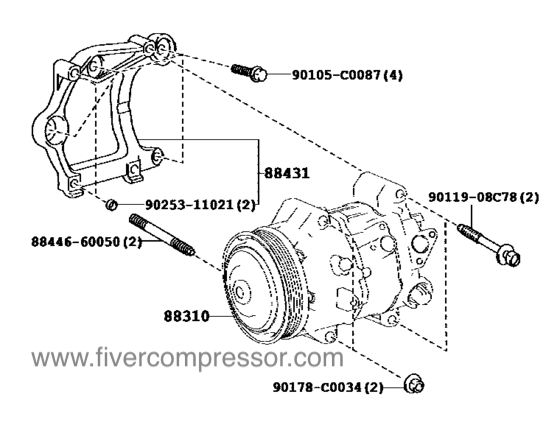

OE / Part number
88310-0R060, 883100R060, 88310-0R061, 883100R061

OE No.:88310-0R060, 883100R060;88310-0R061, 883100R061 Product Name:Compresseur de climatisation pour véhicule Applications:RAV4/VANGUARD ASA44 2013-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / RAV4 A/C Compressor / VANGUARD A/C CompressorIOS A/C compressors
OE / Part number88310-0R060, 883100R060, 88310-0R061, 883100R061
ApplicationApplications: RAV4/VANGUARD ASA44 2013-2018

§ 03

Product details

OE No.:88310-0R060, 883100R060;88310-0R061, 883100R061
Product Name:Compresseur de climatisation pour véhicule
Applications:RAV4/VANGUARD ASA44 2013-2018

ASA44L-ANTGKC
Year 2013 - 2016
Sales region General Frame ASA44 grade G ENGINE 5ARFE TRANSMISSION ATM Model RAV4 (CHINA) From 08.2013 To 07.2016 Gear Shift Type 6FC Vehicle Model RAV4 Fuel Induction HTWC
ASA44L-ANTMKC
Year 2013 - 2018
Sales region General Frame ASA44 grade M ENGINE 5ARFE TRANSMISSION ATM Model RAV4 (CHINA) From 08.2013 Gear Shift Type 6FC Vehicle Model RAV4 Fuel Induction HTWC
ASA44L-ANTQKC
Year 2013 - 2018
Sales region General Frame ASA44 grade Q ENGINE 5ARFE TRANSMISSION ATM Model RAV4 (CHINA) From 08.2013 Gear Shift Type 6FC Vehicle Model RAV4 Fuel Induction HTWC
