Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-02B40, 8831002B40 COROLLA NRE181 2016-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compresseur de climatisation pour véhicule 88310-02B40, 8831002B40 COROLLA NRE181 2016-2018

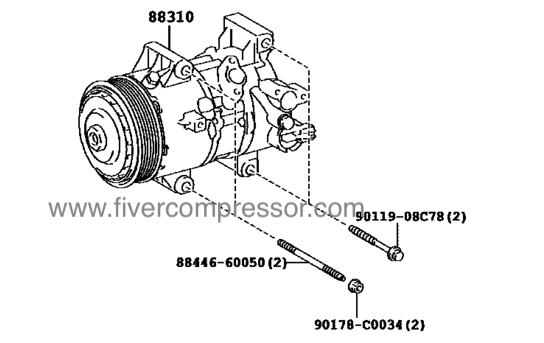

OE / Part number
88310-02B40, 8831002B40

OE standard Quality Auto A/C Compressor OE No.: 88310-02B40, 8831002B40 Product Name:Compresseur de climatisation pour véhicule Applications:COROLLA NRE181 2016-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / COROLLA A/C compressor
OE / Part number88310-02B40, 8831002B40
ApplicationApplications: COROLLA NRE181 2016-2018

§ 03

Product details

OE No.: 88310-02B40, 8831002B40
Product Name:Compresseur de climatisation pour véhicule
Applications:COROLLA NRE181 2016-2018

NRE181L-GEFEZC
Year 2016 - 2018
Sales region General Frame NRE181 grade GLI body SED ENGINE 9NRFTS TRANSMISSION MTM DESTINATION CHI Model COROLLA From 10.2016 Gear Shift Type 6F No.of Doors 4D Vehicle Model Corolla Driver's Position LHD Fuel Induction TBO
NRE181L-GEFNZC
Year 2016 - 2018
Sales region General Frame NRE181 grade GL body SED ENGINE 9NRFTS TRANSMISSION MTM DESTINATION CHI Model COROLLA From 10.2016 Gear Shift Type 6F No.of Doors 4D Vehicle Model Corolla Driver's Position LHD Fuel Induction TBO
NRE181L-GEXEZC
Year 2016 - 2018
Sales region General Frame NRE181 grade GLI body SED ENGINE 9NRFTS TRANSMISSION CVT DESTINATION CHI Model COROLLA From 10.2016 No.of Doors 4D Vehicle Model Corolla Driver's Position LHD Fuel Induction TBO
NRE181L-GEXGZC
Year 2016 - 2018
Sales region General Frame NRE181 grade GLXI body SED ENGINE 9NRFTS TRANSMISSION CVT DESTINATION CHI Model COROLLA From 10.2016 No.of Doors 4D Vehicle Model Corolla Driver's Position LHD Fuel Induction TBO
NRE181L-GEXNZC
Year 2016 - 2018
Sales region General Frame NRE181 grade GL body SED ENGINE 9NRFTS TRANSMISSION CVT DESTINATION CHI Model COROLLA From 10.2016 No.of Doors 4D Vehicle Model Corolla Driver's Position LHD Fuel Induction TBO
