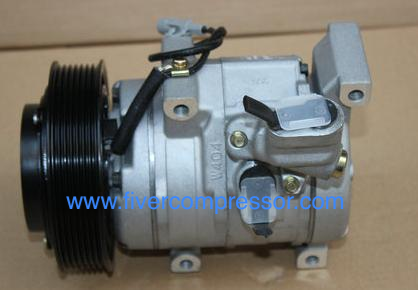

Toyota A/C compressor

Compresseur de climatisation pour véhicule 447260-8281 for Scion 2.4 VVT-i
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Compresseur de climatisation pour véhicule 447260-8281 for Scion 2.4 VVT-i

OE / Part number
447260-8281

Compresseur de climatisation pour véhicule 447260-8281 for Scion 2.4 VVT-i

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / SCION A/C Compressor / Car A/C Compressor
OE / Part number447260-8281
ApplicationApplications: Scion 2.4 VVT-i

§ 03

Product details

Part Name: Compresseur de climatisation pour véhicule

OE: 447260-8281

Applications: Scion 2.4 VVT-i

Compressor Info:

Item No : WX-10014A
Car Name : Scion 2.4 VVT-i
TYPE : 10S15C
Year model: 2005-
OEM No : 447260-8281
Clutch information : 129mm 7PK 12V

Oil type : PAG 46
Oil Quantity : 180ml
