This Auto A/C Compressor 8831024090, 8832024100 for Lexus SC300(JZZ31) 1991-2000
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

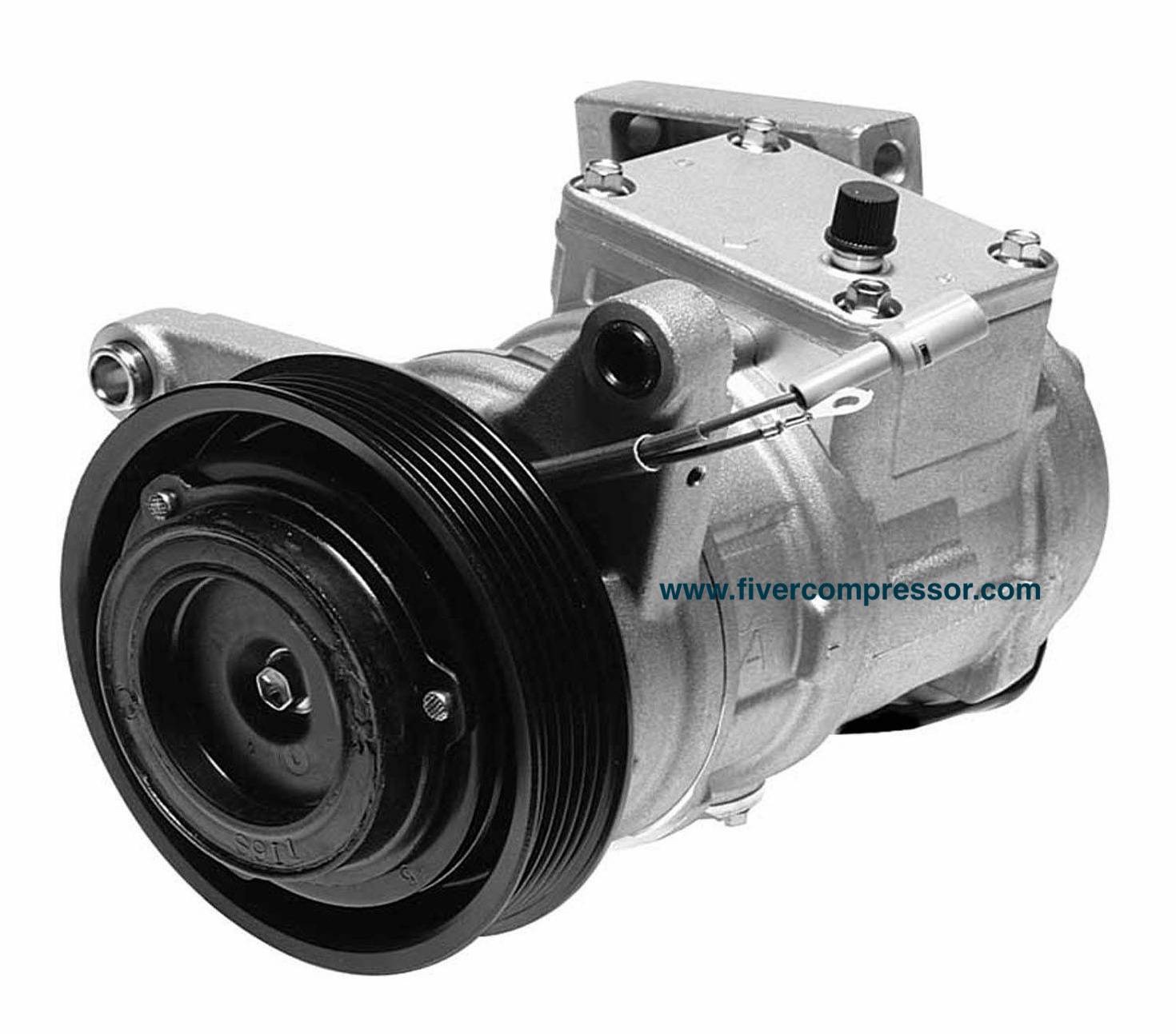

Car air conditioning compressor 8831024090, 8832024100 for Lexus SC300(JZZ31) 1991-2000

Applications:
LEXUS:
JZZ31L-ACMVFAYear 1991 - 1997
JZZ31L-ACMVFKYear 1991 - 1994
JZZ31L-ACPVFAYear 1991 - 2000
TOYOTA SOARER
JZZ30-ACMVZYear 1991 - 2000
JZZ30-ACMZZYear 1991 - 1994
JZZ30-ACPVZYear 1991 - 2000
JZZ30-ACPZZYear 1991 - 1994
Specifications:
| Refrigerant Type | R12 |
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 5 |
| Pulley Belt Type | Serpentine PV6 |
| Mounting Type | Ear and Tangent |
| Alternate/OEM Part Number(s): 2471003462, 254273, 254336, 4710151, 8831024090, 8832024100 |
