Products A/C compressor

Type CR08D CR08 Type 6PK Auto A/C Compressor NE5161450A, NE5161450B, NE5161K00 for Mazda MX-5 Miata L4 2.0L 2006-2015 6PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products CR08D A/C compressor

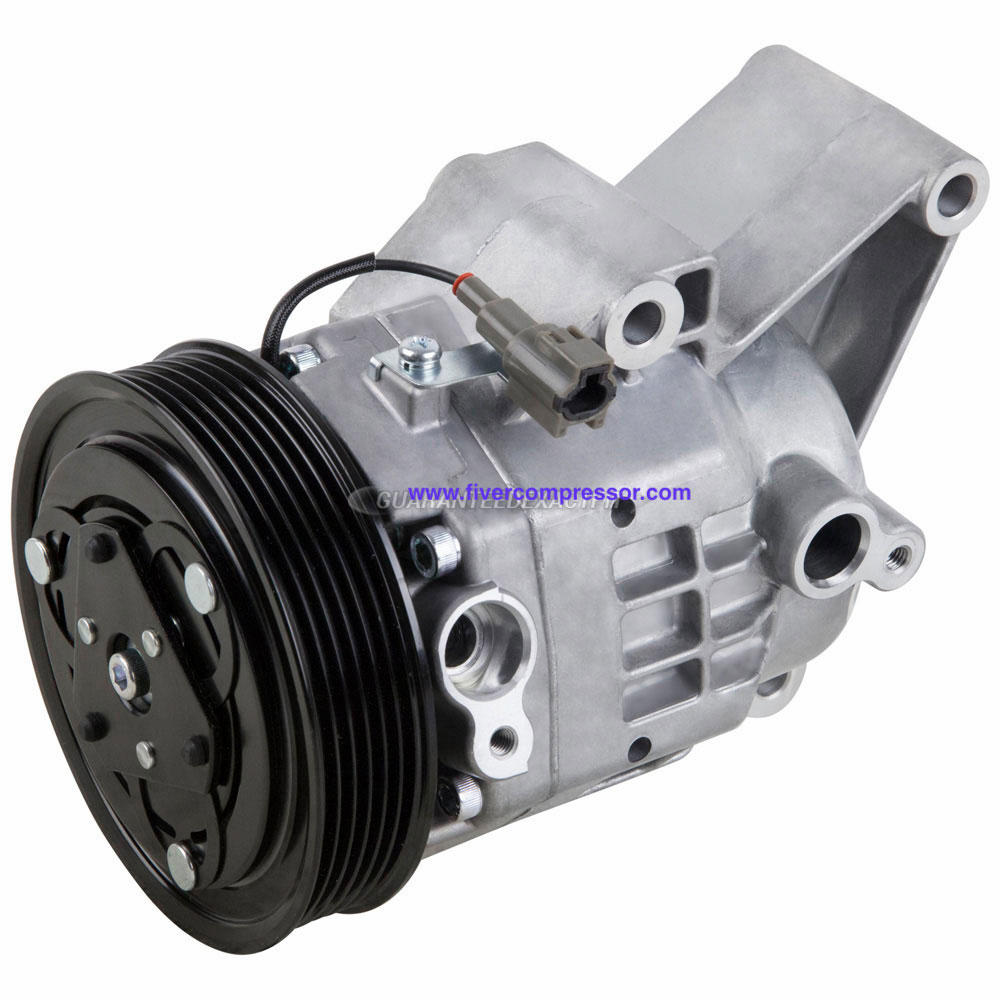

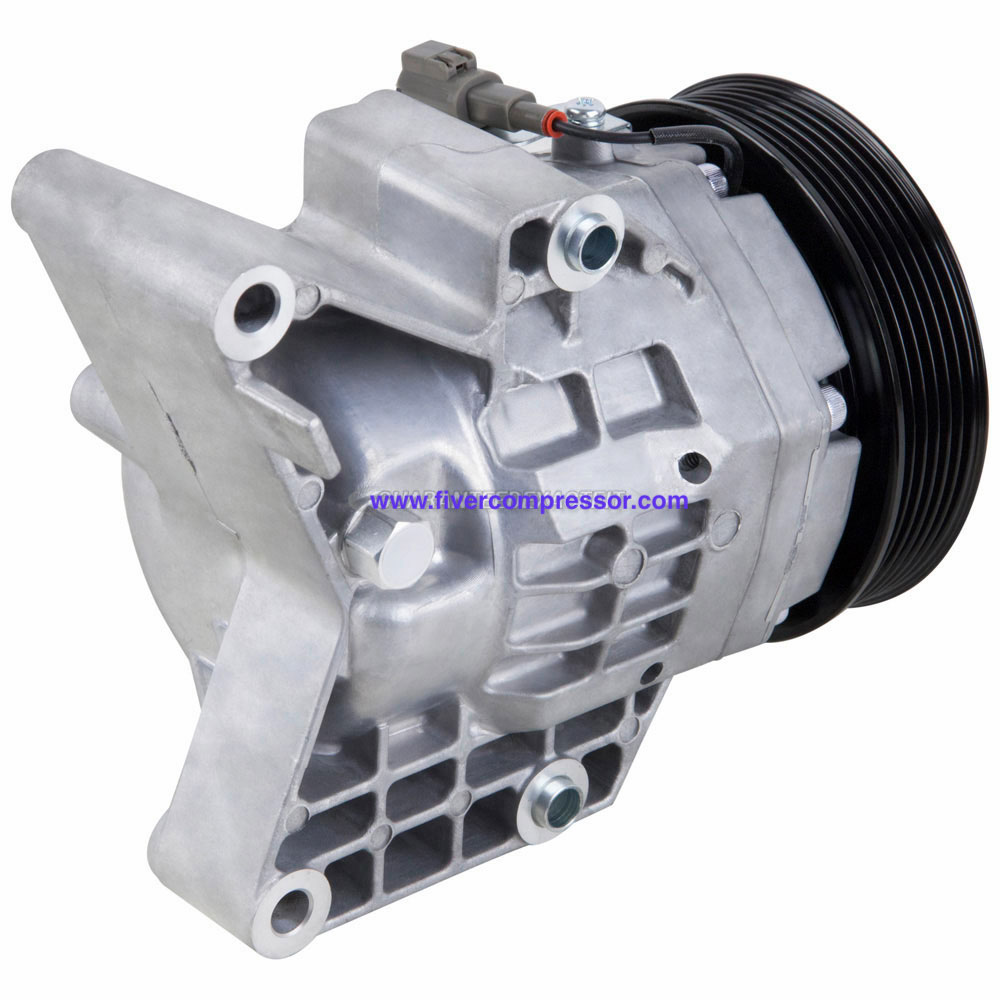

CR08 Type 6PK Auto A/C Compressor NE5161450A, NE5161450B, NE5161K00 for Mazda MX-5 Miata L4 2.0L 2006-2015

OE / Part number
NE5161450A, NE5161450B, NE5161K00, NEY161450

Automotive A/C Compressor for Mazda MX-5 Miata; Mazda MX-5 Miata Air Conditioning Compressor; MAZDA A/C Compressor

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor TypeCR08D
Pulley Groove6PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor TypeCR08D
Pulley Groove6PK
Coil Voltage12V
OE / Part numberNE5161450A, NE5161450B, NE5161K00, NEY161450

§ 04

Product details

CR08 Type 6PK Auto A/C Compressor NE5161450A, NE5161450B, NE5161K00 for Mazda MX-5 Miata L4 2.0L 2006-2015

Specifications
Clutch Included Included
Clutch Maximum Diameter 4.625 in
Coil Clock Position 1 Wire Lead
Coil Voltage 12 2H
Compatible Refrigerant Oil Type PAG 100
Compressor Type CR10
Discharge Port Type O-Ring
Distance From Clutch To Mounting Flange 2.265625 in
Mount Distance MM 57.404 mm
Mounting Hardware? Not Included
Mounting Type Tangent Mount
New or Reman New
O-Ring A Number/Desc [24661] / Green O-Ring
O-Ring A Quantity 1
O-Ring B Number/Desc [24681] / Green O-Ring
O-Ring B Quantity 1
Oil Filled Yes
Pulley Belt Type Serpentine
Pulley Diameter MM 117.602 mm
Pulley Groove Quantity 6
Pulley Lip Diameter 4.625 in
Pulley Ridge Diameter 4.625 in
Refrigerant Type R134a
Suction Port Type O-Ring
Terminal Type Pin
Type CR-08
VEHICLE FITMENT

2006 Mazda MX-5 Miata All Models
2007 Mazda MX-5 Miata All Models
2008 Mazda MX-5 Miata All Models
2009 Mazda MX-5 Miata All Models
2010 Mazda MX-5 Miata All Models

2011 Mazda MX-5 Miata All Models

2012 Mazda MX-5 Miata All Models

2013 Mazda MX-5 Miata All Models

2014 Mazda MX-5 Miata All Models

2015 Mazda MX-5 Miata All Models


Alternate/OEM Part Number(s): NE5161450A, NE5161450B, NE5161K00, NEY161450
