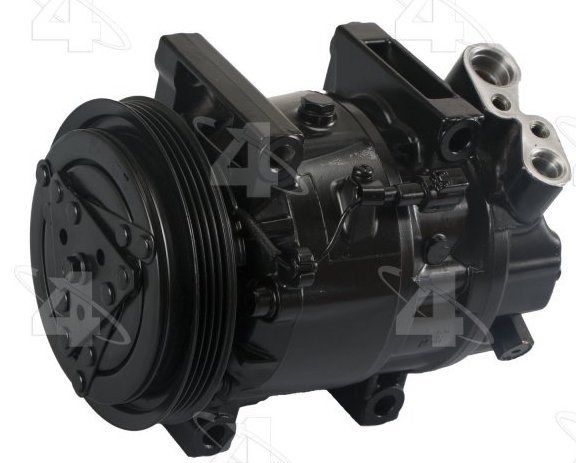

COMPRESSOR-COOL 92600-70F60 92600-70F10 92600-70F61 NISSAN 240SX — aftermarket A/C compressor OE 92600-70F60 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03
Part Name: COMPRESSOR-COOL
Compressor Type: CWV617
Part Number: 92600-70F60 92600-70F10 92600-70F61 92600-70F11 92600-70F12 92600-70F14Remarks: COMPRESSOR ASSY-COOLER. Applied Model: *FED.C +*CAL.C; Specification: F/AIR CON-STD TYPE; (02.94 - 10.95)
Pulley Diameter: 133MM
Pulley Grooves: 4PK

§ 04
