Nissan A/C compressor

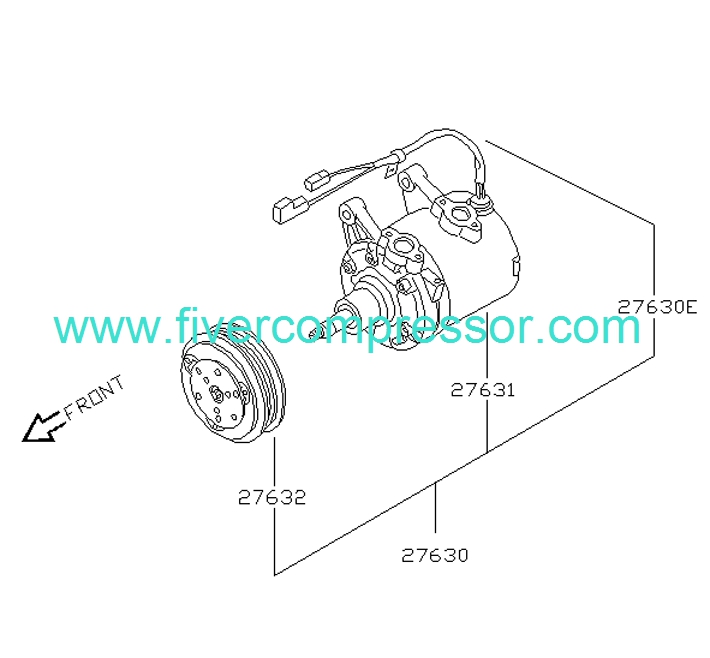

COMPRESSOR-COOL 92600-53F25 92600-53F71 92600-53F70 NISSAN 240SX
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Nissan A/C compressor

COMPRESSOR-COOL 92600-53F25 92600-53F71 92600-53F70 NISSAN 240SX

OE / Part number
92600-53F25, 92600-53F71, 92600-53F70, 92600-53F02, 92600-53F01, 92600-53F00, 92600-40F07, 92600-40F06, 92600-40F05, 92600-42L04

COMPRESSOR-COOL 92600-53F25 92600-53F71 92600-53F70 NISSAN 240SX — aftermarket A/C compressor OE 92600-53F25 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

OE / Part number92600-53F25, 92600-53F71, 92600-53F70, 92600-53F02, 92600-53F01, 92600-53F00, 92600-40F07, 92600-40F06, 92600-40F05, 92600-42L04
ApplicationNISSAN 240SX [S13] 07.1988-09.1993

§ 03

Product details

Part Name: COMPRESSOR-COOL
Part Number: 92600-53F25 92600-53F71 92600-53F70 92600-53F02 92600-53F01 92600-53F00 92600-40F07 92600-40F06 92600-40F05 92600-42L04
Application: NISSAN 240SX [S13] 07.1988-09.1993
Remarks: COMPRESSOR ASSY-COOLER. Applied Model: *FED.C.KA24DE +*FED.FB.KA24DE +*CAL.C.KA24DE +*CAL.FB.KA24DE; Specification: F/AIR CON-STD TYPE; (05.92 - 05.93)
