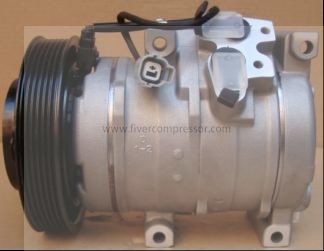

AC Compressor Assy 38800-PH3-013, 38800PH3013 for Honda Accord
OE 38800-PH3-013, 38800PH3013
FIVER AUTOPARTS CO.,LTD
Honda A/C compressor
Compressor is used in the air conditional’s system, the compressor takes the refrigerant gas from the evaporator, compress it, and send it to the strip heater. it is activated from by a belt connected with the crankshaft
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03
APPLICATIONS:Accord 3.0 V6/Acura TL 3.2 V6

§ 04
OE 38800-PH3-013, 38800PH3013
OE 38800P00K01, 38810-P07-014, 38810-P07-024
OE 38800-PH3-003, 38800PH3003
OE 38800-PH1-003, 38800PH1003
