AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
Auto AC Compressor Assy 88320-6A170 88310-35850 447220-5192 447220-5191 447220-5190 447180-5320 for Land Cruiser Prado Hilux
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

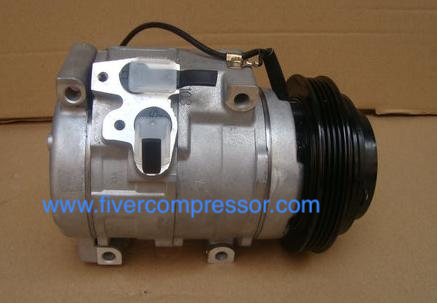

Part Name: Auto AC Compressor Assy
OE/Cross Reference: 88320-6A170 88310-35850 447220-5192 447220-5191 447220-5190 447180-5320
Applications:Land Cruiser 2.7i/Prado 2.7i /Hilux 2.7i
Compressor Info:
Item No : WX-10023
Car Name : Land Cruiser 2.7i/Prado 2.7i /Hilux 2.7i
TYPE : 10S17C
Year model: 2002- 2004
OEM No : 88320-6A170/88310-35850
447220-5192/447220-5191/447220-5190/447180-5320
Clutch information : 120mm 4PK 12V
Oil type : PAG 46
Oil Quantity : 200ml
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
