FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

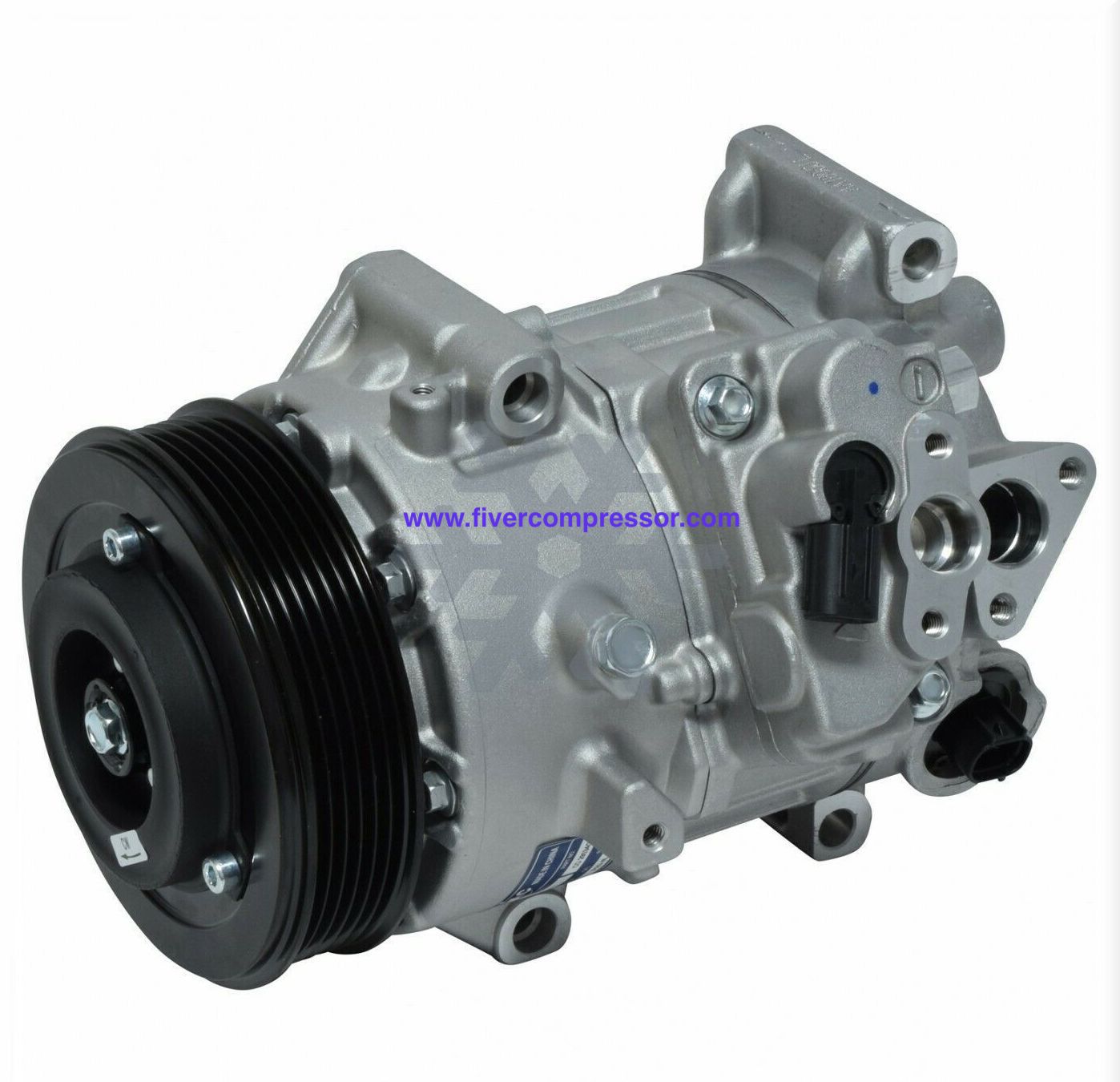

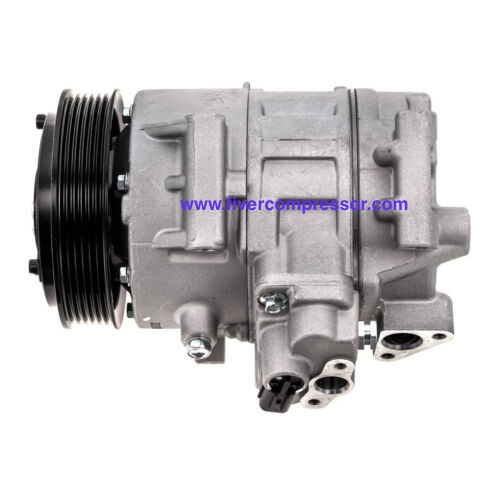

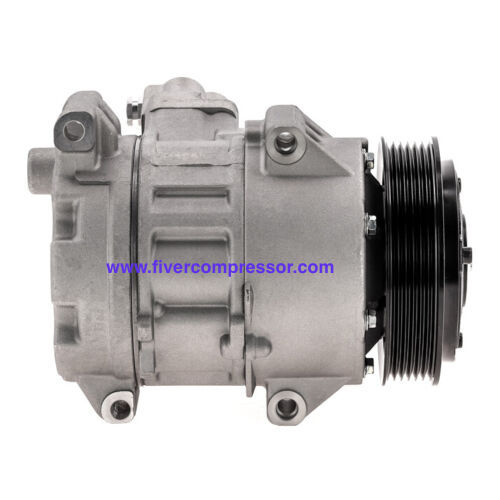

Toyota A/C compressor

Auto AC Compressor Assy 88310-21150, 8831021150;88310-21151, 8831021151 for SCION TC / ZELAS AGT20L
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

Auto AC Compressor Assy 88310-21150, 8831021150;88310-21151, 8831021151 for SCION TC / ZELAS AGT20L

OE / Part number
88310-21150, 8831021150, 88310-21151, 8831021151

OE standard Quality Auto A/C Compressor 88310-21150, 8831021150;88310-21151, 8831021151 for SCION TC ZELAS 2011-2016

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelToyota A/C compressor / Auto A/C compressor / Scion TC A/C CompressorIENTA A/C Compressor / ZELAS A/C Compressor
OE / Part number88310-21150, 8831021150, 88310-21151, 8831021151
ApplicationApplications: S CION TC (AGT20 2010-2016) | AGT20L-ALFGKA; | AGT20L-ALFGKK;

§ 03

Product details


Auto AC Compressor Assy 88310-21150, 8831021150;88310-21151, 8831021151 SCION TC / ZELAS AGT20L 2011-2016

Compatibility

This part is compatible with Following vehicle(s)
NotesYearMakeModelTrimEngine
2016ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
2015ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
2014ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
2013ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
2012ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated
2011ScionTCBase Coupe 2-Door2.5L 2494CC 152Cu. In. l4 GAS DOHC Naturally Aspirated

OE No.:88310-21150, 8831021150;88310-21151, 8831021151
Product Name:Auto AC Compressor Assy for SCION TC/ ZELAS AGT20

Pulley Grooves: 6PK

Pulley Diameter: 119MM

Voltage:12V


Applications:SCION TC (AGT20 2010-2016)
AGT20L-ALFGKA;
AGT20L-ALFGKK;

AGT20L-ALTGKA

AGT20L-ALTGKK

ZELAS (AGT20 2010-2014)

AGT20L-ALFGK 2010-2013

AGT20L-ALFGKV 2010-2013

AGT20L-ALTGK 2010-2014

AGT20L-ALTGKV 2010-2016

AGT20L-ALTGKC 2011-2014
