Toyota A/C compressor

Auto A/C Compressor 8832008080, 883200E050, 883200E090, 8832048170 for Lexus RX350(GGL10/GGL15) 3.5L V6 and Toyota Highlander(GSU40/GSU45)…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

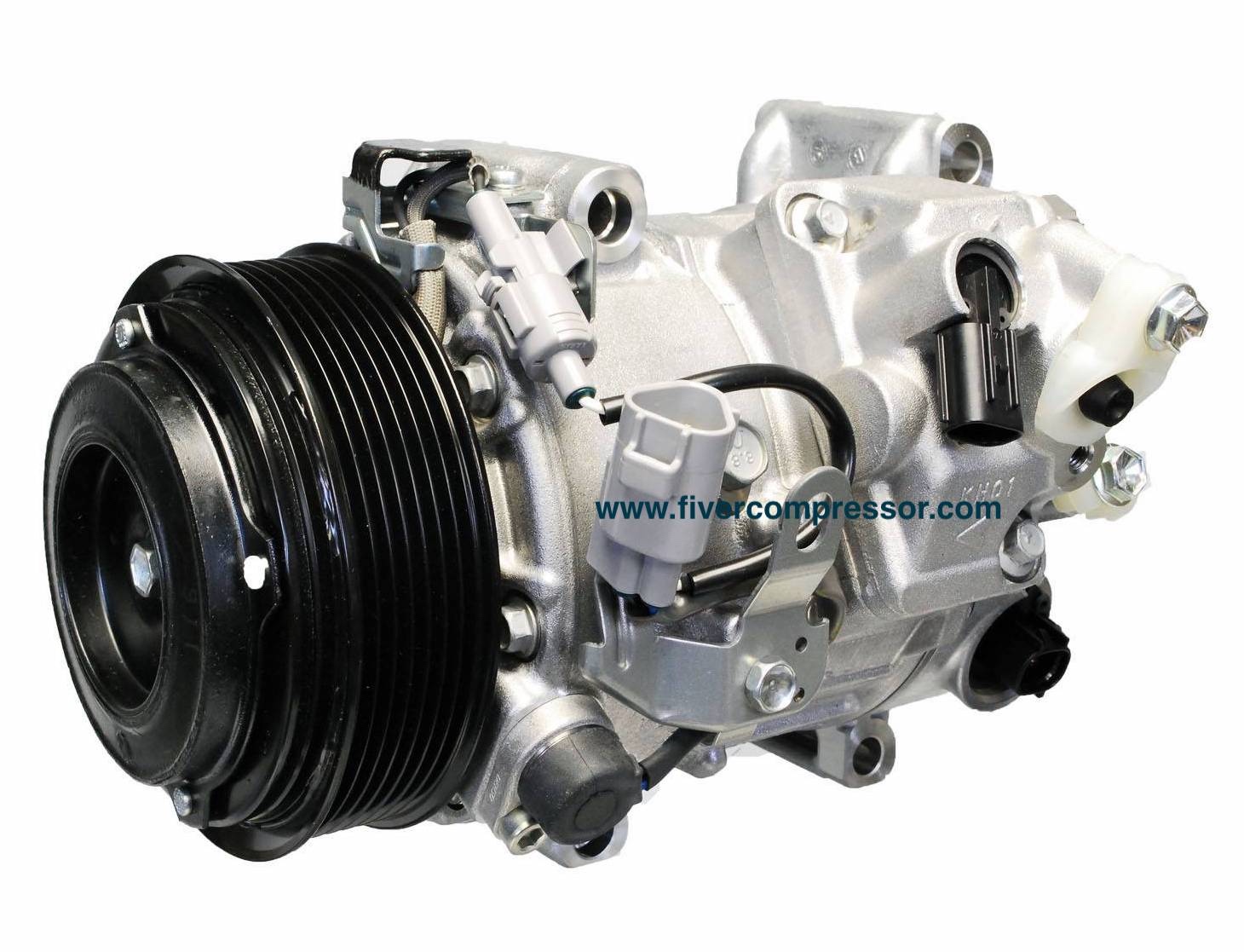

Auto A/C Compressor 8832008080, 883200E050, 883200E090, 8832048170 for Lexus RX350(GGL10/GGL15) 3.5L V6 and Toyota Highlander(GSU40/GSU45) 3.5L V6 2009-2015

OE / Part number
4471604900, 8831048213, 8832008070, 8832008080, 883200E050, 883200E090, 8832048170, 8832048220, 8832048260, 8832048280

Auto A/C Compressor 8832008080, 883200E050, 883200E090, 8832048170 for Lexus RX350(GGL10/GGL15) 3.5L V6 and Toyota Highlander(GSU40/GSU45) 3.5L V6 2009-2015 — aftermarket A/C compressor OE 4471604900 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelA/C Compressor for Lexus RX350 3.5L V6 / Lexus RX350 GGL10/GGL15 A/C Compressor / air conditioning compressor for Lexus RX350 2009-2015 / A/C Compressor fo Toyota Highlander 3.5L V6
OE / Part number4471604900, 8831048213, 8832008070, 8832008080, 883200E050, 883200E090, 8832048170, 8832048220, 8832048260, 8832048280
ApplicationApplications: TOYOTA

§ 03

Product details

Auto A/C Compressor 8832008080, 883200E050, 883200E090, 8832048170 for Lexus RX350(GGL10/GGL15) 3.5L V6 and Toyota Highlander(GSU40/GSU45) 3.5L V6 2009-2015

Applications:

TOYOTA

HIGHLANDER/ KLUGER

GSU40L-ARANKAYear 2009 - 2013

GSU45L-ARANKA Year 2009 - 2013

LEXUS

RX350

GGL10L-CWTGKA Year 2009 - 2015

GGL15L-CWTGKA Year 2009 - 2015

GGL15L-CWZGKA Year 2012 - 2015

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 115.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine 7PK
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 4471604900, 8831048213, 8832008070, 8832008080, 883200E050, 883200E090, 8832048170, 8832048220, 8832048260, 8832048280
