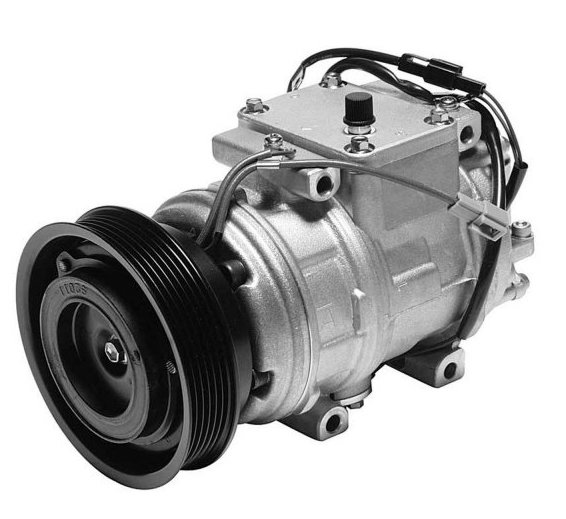

Toyota A/C compressor

10PA17VC Auto AC Compressor 8831032120, 8832032090, 8832032091 for Lexus ES250(VZV21) 2.5L V6 1990-1991 for Toyota Camry DLX/LE 1988-1991
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

10PA17VC Auto AC Compressor 8831032120, 8832032090, 8832032091 for Lexus ES250(VZV21) 2.5L V6 1990-1991 for Toyota Camry DLX/LE 1988-1991

OE / Part number
8832003020, 8832032090, 883203209084, 8832032091, 883203209184, 8832032093

This Auto AC Compressor 8831032120, 8832032090, 8832032091 is for Lexus ES250 2.5L V6 1990

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelLexus ES250 V6 A/C Compressor / A/C compressor supplier / A/C Compressor for Lexus ES250 V6 1990 / Lexus A/C Compressor
OE / Part number8832003020, 8832032090, 883203209084, 8832032091, 883203209184, 8832032093
ApplicationApplications: Lexus

§ 03

Product details

10PA17VC Auto AC Compressor 8831032120, 8832032090, 8832032091 for Lexus ES250(VZV21) 2.5L V6 1990-1991 for Toyota Camry DLX/LE 1988-1991

Applications:

Lexus

ES (VCV10_, F1, VZV21_, F2) 250 (VZV21_)12.1989 - 09.1991Saloon

Toyota

Camry Base/LE/DLX/DLX ALL TRAC L4 2.0L 1988-1991

Camry LE/DLX. V6 2.5L 1988-1991

Specifications:

Refrigerant TypeR-134A
Pulley Groove Quantity5
Switch Service PortYes
Clutch IncludedYes
Belt TypeSerpentine
Coil Clock PositionWire Lead
Compressor Type10PA17VC
Clutch Pulley Diameter5.250 inches
Coil Voltage12
Mounting TypeTangent Mount
Distance Between Mounting Holes3.09375 inches
DescriptionCompressors - New
TypeNippondenso
Discharge Port TypePad Mount
Suction Port TypePad Mount
New or RemanNew
O-Ring A Quantity1
Ctch Dia. MM Prmy133.350
Printed Foot NoteMay Require use of OE Manifold
Mount Distance MM79.756
Oil TypePAG 46
StylePiston
O-Ring A Number/Desc[24156] / Compressor Manifold Port Gasket



Alternate/OEM Part Number(s): 8832003020, 8832032090, 883203209084, 8832032091, 883203209184, 8832032093

1471003776, 254163, 254285, 4710155, 8831032120, 8832032090, 8832032091
