The Auto A/C Compressor 8831024110, 8832024090 for Lexus SC400(UZZ30) 4.0L V8 1991-1997
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

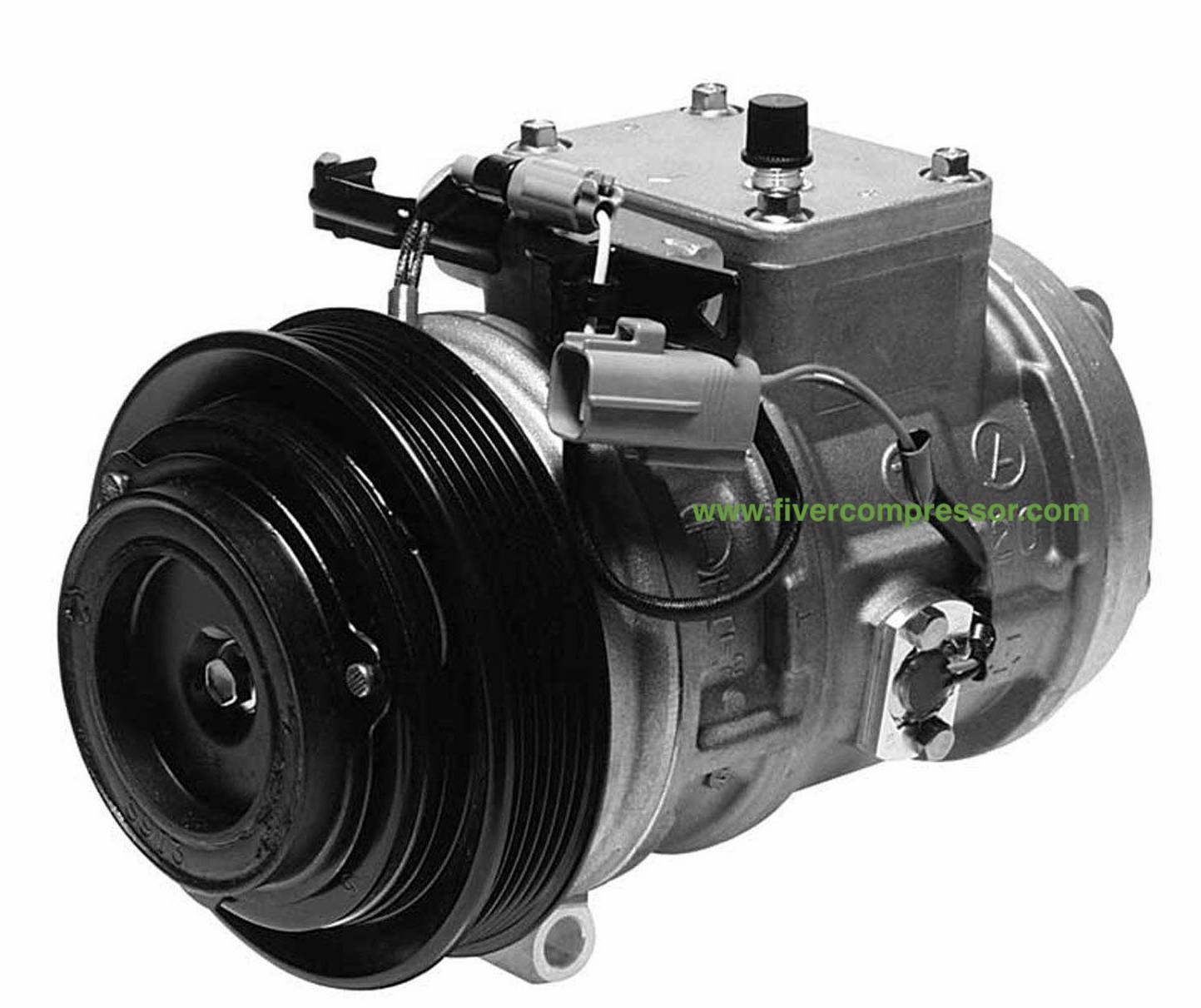

Air Conditioning Compressor 8831024110, 8832024090 for Lexus SC400(UZZ30) 4.0L V8 1991-1997

Applications:
Lexus:
SC400 UZZ30L-ACPZKAYear 1991 - 1997
SC400 UZZ30L-ACPZKKYear 1991 - 1997
SC400 UZZ30L-ACAZKA Year 1997 - 2000
Toyota:
SOARER UZZ30-ACPVKYear 1991 - 1994
SOARER UZZ31-ACPZKYear 1991 - 1997
Specifications:
| Refrigerant Type | R12 |
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 3 |
| Pulley Belt Type | Serpentine |
| Mounting Type | Three Ear Mount |
| Alternate/OEM Part Number(s): 2471003451, 254242, 254387, 4710150, 8831024110, 8832024090 |
