Products A/C compressor

Type 10PA15C 10PA15C 4PK 12V Air Conditioning Compressor with Clutch 57397, 8832012520, 8832060H91 for Toyota 4Runner L4 2.4L 1988-1990 for Toyota… 4PK · 12V
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products 10PA15C A/C compressor

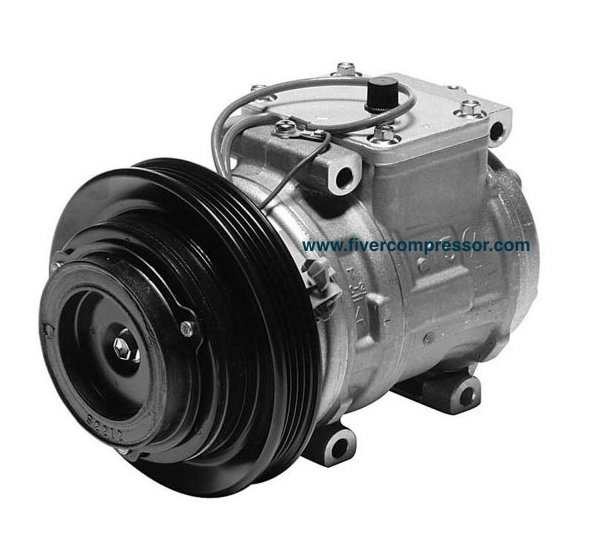

10PA15C 4PK 12V Air Conditioning Compressor with Clutch 57397, 8832012520, 8832060H91 for Toyota 4Runner L4 2.4L 1988-1990 for Toyota Celica 1990-1997 for Toyota Land Cruiser V6 4.0L 1990 for Toyota

OE / Part number
8832012520, 8832060H91, 1471005820, 1471006800, 255428, 276604, 4710139, 8831012760, 8831012761, 8832012350, 8832012540, 8832012710, 8832012720, 8832012740, 8832012830

This Compressor is an oe quality replacement for Air Conditioning Compressor with Clutch 57397, 8832012520, 8832060H91 for Toyota 4Runner L4 2.4L 1988-1990 for Toyota Celica 1990-1997 for Toyota Land Cruiser V6 4.0L 1990 for Toyota Pickup L4 2.4L 1988-1990, 1995

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Specification, split

Recorded against the compressor type and its OE cross-reference.

Compressor

Compressor Type10PA15C
Groove4PK

Clutch and fitment

Coil Voltage12V

§ 02

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 03

Data sheet

Compressor Type10PA15C
Groove4PK
Coil Voltage12V
OE / Part number8832012520, 8832060H91, 1471005820, 1471006800, 255428, 276604, 4710139, 8831012760, 8831012761, 8832012350, 8832012540, 8832012710, 8832012720, 8832012740, 8832012830
ApplicationApplications: Toyota 4Runner L4 2.4L (90-88)

§ 04

Product details

10PA15C 4PK 12V Air Conditioning Compressor with Clutch 57397, 8832012520, 8832060H91 for Toyota 4Runner L4 2.4L 1988-1990 for Toyota Celica 1990-1997 for Toyota Land Cruiser V6 4.0L 1990 for Toyota Pickup L4 2.4L 1988-1990, 1995

Part Specifications

  • Clutch Included:Included
  • Mount Distance A "IN":1.65625
    Mount Distance A "MM":41.910
    Pulley Dia. "MM":139.700
    Discharge Port Type: Pad Mount
    Suction Port Type: Pad Mount
    Attention Note: May Require use of OE Manifold
    Belt Type:Serpentine
    Coil Clock:1 Wire Lead
    Coil Voltage:12
    Connector Type:Spade
    Groove:4
    Model:10PA15C
    Mount Type:Tangent Mount
    Oil Type:PAG 46 Refrigerant Type:R134a

Applications:

  • Toyota 4Runner L4 2.4L (90-88)
  • Toyota Celica L4 1.8L/1.6L (97-90)
  • Toyota Land Cruiser V6 4.0L (90)
  • Toyota Pickup (95)  L4 2.4L  (90-88)

Alternate/OEM Part Number(s): 1471005820, 1471006800, 255428, 276604, 4710139, 8831012760, 8831012761, 8832012350, 8832012520, 8832012540, 8832012710, 8832012720, 8832012740, 8832012830
