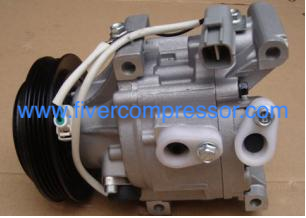

Toyota A/C compressor

A/C Compressor for vehicle 88320-52010, 8832052010 for BB ECHO FUN CARGO PLATZ VITZ WILL YARIS/ ECHO/ VIOS/ LIMO
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor for vehicle 88320-52010, 8832052010 for BB ECHO FUN CARGO PLATZ VITZ WILL YARIS/ ECHO/ VIOS/ LIMO

OE / Part number
88320-52010, 88320-52400, 447260-7841, 447260-7842, 447260-7840

A/C Compressor for vehicle 88320-52010, 8832052010 for BB ECHO FUN CARGO PLATZ VITZ WILL YARIS/ ECHO/ VIOS/ LIMO Brand new and remanufactured parts.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / FUN CARGO A/C Compressor / VITZ Compressor / YARIS/ ECHO/ VIOS/ LIMO A/C Compressor
OE / Part number88320-52010, 88320-52400, 447260-7841, 447260-7842, 447260-7840
ApplicationApplications: BB

§ 03

Product details

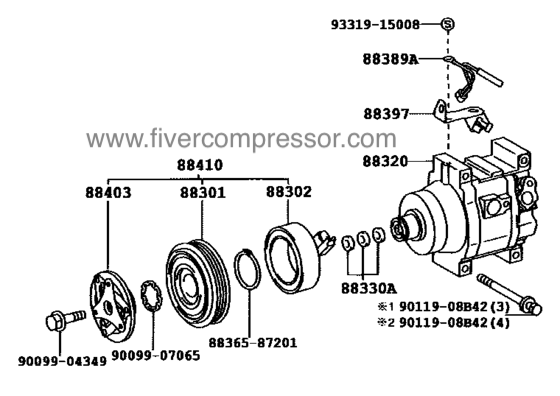

Part Name: A/C Compressor for Car

OE/ Cross reference: 88320-52010/ 88320-52400 / 447260-7841/ 447260-7842/ 447260-7840

Applications:

BB

NCP30 2000-2005
NCP31 2000-2005
NCP34 2001-2003
NCP35 2000-2005

ECHO NCP12 1999-2006

FUN CARGO NCP20 1999-2005
NCP21 1999-2005
NCP25 1999-2005

PLATZ SCP11 1999-2005

VITZ

NCP10 1999-2005
NCP13 2000-2005
NCP15 1999-2005
SCP10 1999-2005

WILL NCP19 2000-2001

YARIS/ ECHO/ VIOS/ LIMO NCP10 1999-2005
NCP11 1999-2005
NCP12 1999-2005
NCP13 2001-2005
NCP20 1999-2005
NCP21 2000-2005
NCP22 2000-2005
SCP10 1999-2005

Compressor Info:

Item No : WX-10002
Car Name : Corolla 1.3/Yaris 1.3/Echo 1.5
TYPE : SCSA06C
Year model : 2001-2005
OEM No : 88320-52010/ 88320-52400 / 447260-7841/447260-7842/ 447260-7840
Clutch information : 110mm 4PK 12V
Oil type : PAG 46
Oil Quantity : 85ml
