Toyota A/C compressor

A/C Compressor for vehicle 88310-52730, 8831052730PROBOX/ SUCCEED RACTIS VERSO VITZ YARIS/ ECHO/ VIOS/ LIMO
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor for vehicle 88310-52730, 8831052730PROBOX/ SUCCEED RACTIS VERSO VITZ YARIS/ ECHO/ VIOS/ LIMO

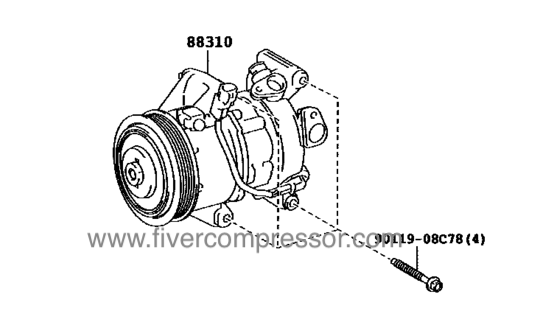

OE / Part number
88310-52730, 8831052730

A/C Compressor for vehicle 88310-52730, 8831052730PROBOX/ SUCCEED RACTIS VERSO VITZ YARIS/ ECHO/ VIOS/ LIMO — aftermarket A/C compressor OE 88310-52730 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelToyota A/C compressor / SUCCEED A/C Compressor / RACTIS A/C Compressor / VERSO A/C Compressor
OE / Part number88310-52730, 8831052730
ApplicationApplications: PROBOX/ SUCCEED (NSP160 2014-2018)

§ 03

Product details

OE No.:88310-52730, 8831052730
Product Name:A/C Compressor for vehicle
Applications:PROBOX/ SUCCEED (NSP160 2014-2018)
RACTIS NSP120 2010-2014; NSP122 2010-2014
VERSO (NSP120 2010-2015)
VITZ (NSP130 2010-2014; NSP135 2010-2018)

YARIS/ ECHO/ VIOS/ LIMO (NSP130 2011-2014)

§ 04
