AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
Reemplazo del compresor de aire acondicionado del vehículo OE No.:88310-0E141, 883100E141 Product Name:A/C Compressor for vehicle Applications:HIGHLANDER/ KLUGER ASU50 2013-2018
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

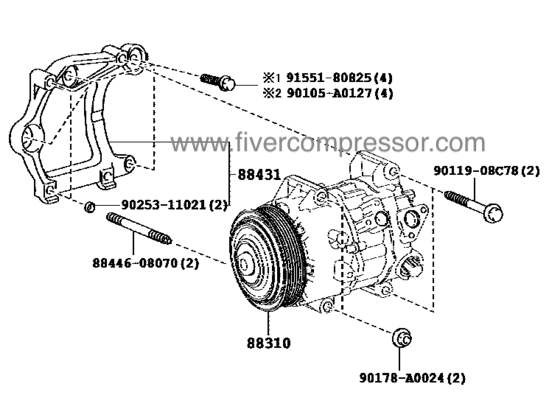

OE No.:88310-0E141, 883100E141
Product Name:A/C Compressor for vehicle
Applications:HIGHLANDER/ KLUGER ASU50 2013-2018
ASU50L-ARTNKA
Year 2013 - 2018
Sales region U.S.A. Frame ASU50 ENGINE 1ARFE TRANSMISSION ATM Model HIGHLANDER From 12.2013 Gear Shift Type 6FC Vehicle Model Highlander Model Mark N Fuel Induction HTWC
ASU50L-ARTGKX
Year 2013 - 2018
Sales region Europe Frame ASU50 grade LIMD ENGINE 1ARFE TRANSMISSION ATM DESTINATION RUS Model HIGHLANDER From 12.2013 Gear Shift Type 6FC Vehicle Model Highlander Driver's Position LHD Fuel Induction HTWC
ASU50L-ARTNKX
Year 2013 - 2018
Sales region Europe Frame ASU50 grade LE ENGINE 1ARFE TRANSMISSION ATM DESTINATION RUS Model HIGHLANDER From 12.2013 Gear Shift Type 6FC Vehicle Model Highlander Driver's Position LHD Fuel Induction HTWC
ASU50L-ARTGKX
Year 2013 - 2018
Sales region General Frame ASU50 grade LIMD ENGINE 1ARFE TRANSMISSION ATM DESTINATION RUS Model HIGHLANDER From 12.2013 Gear Shift Type 6FC Vehicle Model Highlander Driver's Position LHD Fuel Induction HTWC
ASU50L-ARTNKX
Year 2013 - 2018
Sales region General Frame ASU50 grade LE ENGINE 1ARFE TRANSMISSION ATM DESTINATION RUS Model HIGHLANDER From 12.2013 Gear Shift Type 6FC Vehicle Model Highlander Driver's Position LHD Fuel Induction HTWC
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
