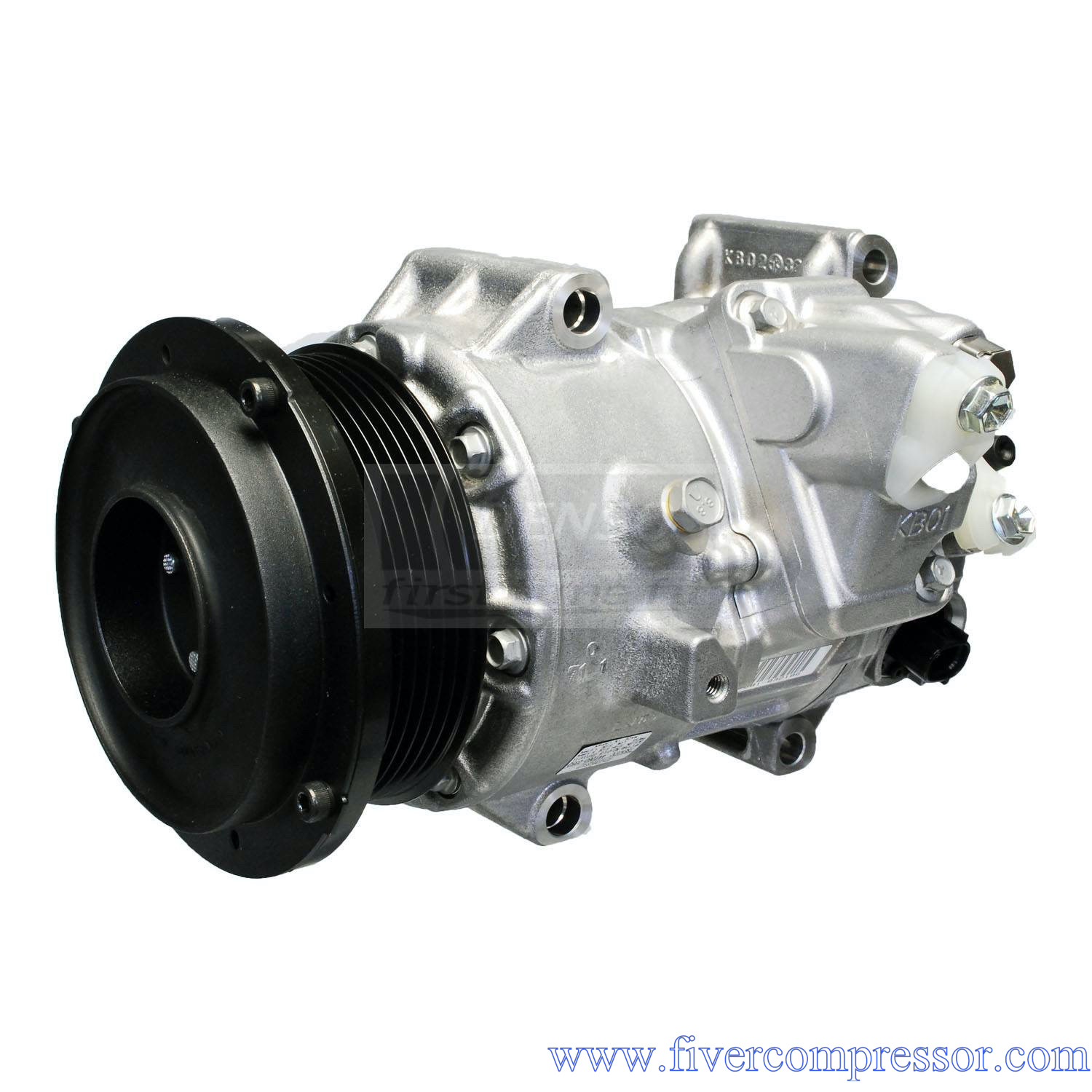

AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor

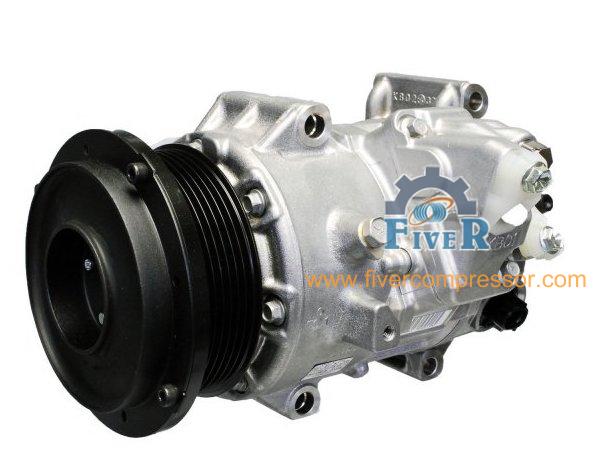

A/C Compressor for vehicle 88310-0E090, 883100E090,88310-48250,8832033210 HIGHLANDER/ KLUGER and Toyota VENZA — aftermarket A/C compressor OE 10-0E090 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03
A/C Compressor for vehicle 88310-0E090, 883100E090,88310-48250,8832033210 HIGHLANDER/ KLUGER and Toyota VENZA

| Specifications | |
|---|---|
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 110.0 mm |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine |
| Mounting Type | Bolt Tangent |
Alternate OE No.:88310-0E090, 883100E090,88310-48250,8832033210, 883100T020, 4471500361, 4471501071, 8831048240, 8831048250
Product Name:A/C Compressor for vehicle
Applications:HIGHLANDER/ KLUGER(ASU402009-2013)
| TOYOTA | HIGHLANDER | 2009-2013 |
| TOYOTA | VENZA | 2009-2015 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
