Toyota A/C compressor

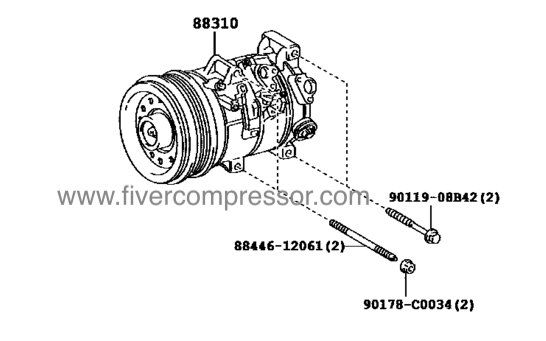

A/C Compressor for vehicle 88310-02690, 8831002690 COROLLA ZRE152 2010-2014 ZRE153 2010-2013
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor for vehicle 88310-02690, 8831002690 COROLLA ZRE152 2010-2014 ZRE153 2010-2013

OE / Part number
88310-02690, 8831002690

A/C Compressor for vehicle 88310-02690, 8831002690 COROLLA ZRE152 2010-2014 ZRE153 2010-2013 — aftermarket A/C compressor OE 88310-02690 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / COROLLA A/C compressor
OE / Part number88310-02690, 8831002690
ApplicationApplications: COROLLA

§ 03

Product details

OE No.:88310-02690, 8831002690
Product Name:A/C Compressor for vehicle
Applications:COROLLA

ZRE152 2010-2014
ZRE153 2010-2013


ZRE152L-GEXEKC
Year 2010 - 2014
Sales region General Frame ZRE152 grade GLI body SED ENGINE 2ZRFE DESTINATION CHI Model COROLLA (CHINA) From 09.2010 To 06.2014 Gear Shift Type CVFC Vehicle Model Corolla Driver's Position LHD
ZRE152L-GEXGKC
Year 2010 - 2014
Sales region General Frame ZRE152 grade GLXI body SED ENGINE 2ZRFE DESTINATION CHI Model COROLLA (CHINA) From 09.2010 To 06.2014 Gear Shift Type CVFC Vehicle Model Corolla Driver's Position LHDZRE153L-GEXEKC
Year 2010 - 2013
Sales region General Frame ZRE153 grade GLX body SED ENGINE 3ZRFE DESTINATION CHI Model COROLLA (CHINA) From 09.2010 To 01.2013 Gear Shift Type CVFC Vehicle Model Corolla Driver's Position LHD
