Toyota A/C compressor

A/C Compressor 88320-6A490/88310-6A140/88310-6A141/ 88320-35730/88320-6A081/88320-2F020 for LAND CRUISER PRADO/HILUX SURF/ 4RUNNER/HIACE…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

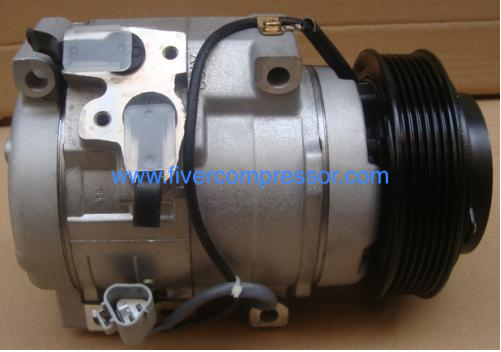

A/C Compressor 88320-6A490/88310-6A140/88310-6A141/ 88320-35730/88320-6A081/88320-2F020 for LAND CRUISER PRADO/HILUX SURF/ 4RUNNER/HIACE 2004-2018

OE / Part number
6A141, 2F020, 88320-6A490, 88310-6A140, 88310-6A141, 88320-35730, 88320-6A081, 88320-2F020

A/C Compressor 88320-6A490/88310-6A140/88310-6A141/ 88320-35730/88320-6A081/88320-2F020 for LAND CRUISER PRADO/HILUX SURF/ 4RUNNER/HIACE 2004-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / LANDCRUISER PRADO A/C compressor / HILUX SURF/ 4RUNNER A/C Compressor / HIACE A/C Compressor
OE / Part number6A141, 2F020, 88320-6A490, 88310-6A140, 88310-6A141, 88320-35730, 88320-6A081, 88320-2F020
ApplicationApplications: LAND CRUISER PRADO

§ 03

Product details

Part Name: A/C Compressor

OE/Cross reference: 88320-6A490/88310-6A140/88310-6A141/ 88320-35730/88320-6A081/88320-2F020

Applications:

LAND CRUISER PRADO

KDJ120 2004-2009

KDJ150 2009-2018

KDJ121 2002-2005
KDJ125 2002-2009
HILUX SURF/ 4RUNNER
KDN215 2002-2005
HIACE 2004-2018

Compressor Info:

Item No : WX-10025B
Car Name : Land Cruiser/Hiace 3.0 D-4D/ Hiace/ Hilux 2.5 D-4D

TYPE : 10S17C
Year model: 2001-2009
OEM No : 88320-6A490/88310-6A140/88310-6A141
88320-35730/88320-6A081/88320-2F020
Clutch information : 120mm 7PK 12V
Oil type : PAG 46
Oil Quantity : 200ml

§ 04
