AC Compressor Assy 88310-0R014, 883100R014 for Toyota Camry LE, SE, XLE, XSE 2.5L and RAV4RAV4. 2.5L
OE 88310-0R014, 883100R014
FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
AC Compressor 883106A171, 883106A172, 883206A120, 883206A122 for Lexus GX470 UZJ120 2002-2009
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

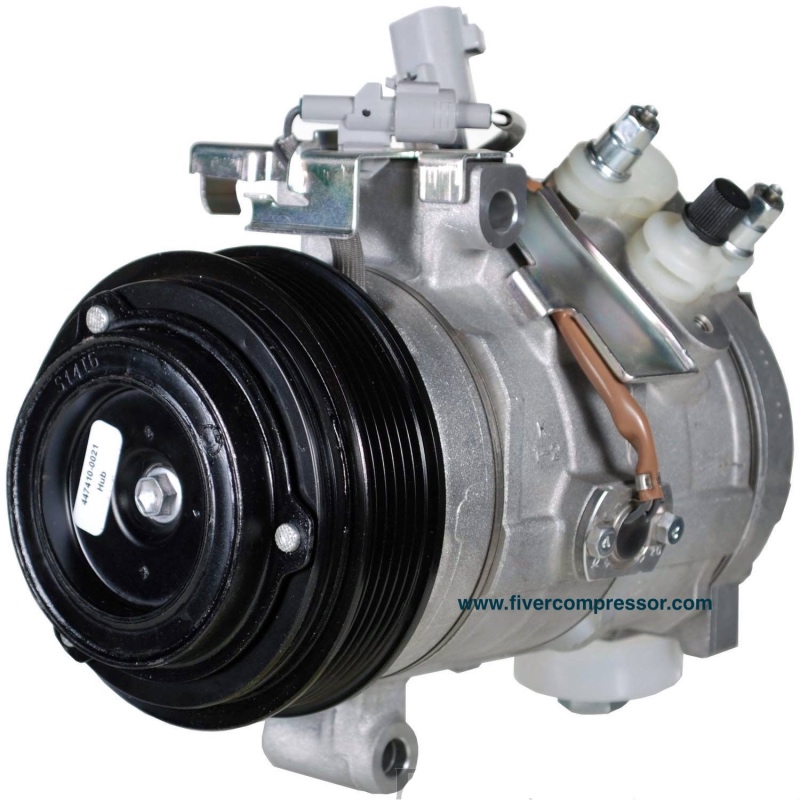

AC Compressor 883106A171, 883106A172, 883206A120, 883206A122 for Lexus GX470 UZJ120 2002-2009

Applications:
LEXUS GX470
UZJ120L-GKAZKAYear 2002 - 2009Sales region U.S.A. Frame UZJ120 ENGINE 2UZFE TRANSMISSION ATM Model GX470 From 11.2002 To 08.2009 Gear Shift Type 5FCNo.of Doors 5D Vehicle Model GX470 Driver's Position LHD
Specifications:
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 115.0 MM |
| Compressor Mount Hole Quantity | 3 |
| Pulley Belt Type | Serpentine |
| Mounting Type | Bolt Tangent |
| Alternate/OEM Part Number(s): 255637, 276594, 4471904130, 4471904531, 883106A171, 883106A172, 883206A120, 883206A122 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
