Toyota A/C compressor

AC Compressor 8831050140, 8831050142, 8832050100, 8832050101, 8832050102 for Lexus RX430 (UCF30) Toyota Crown (UZS171/UZS173/UZS175) and…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

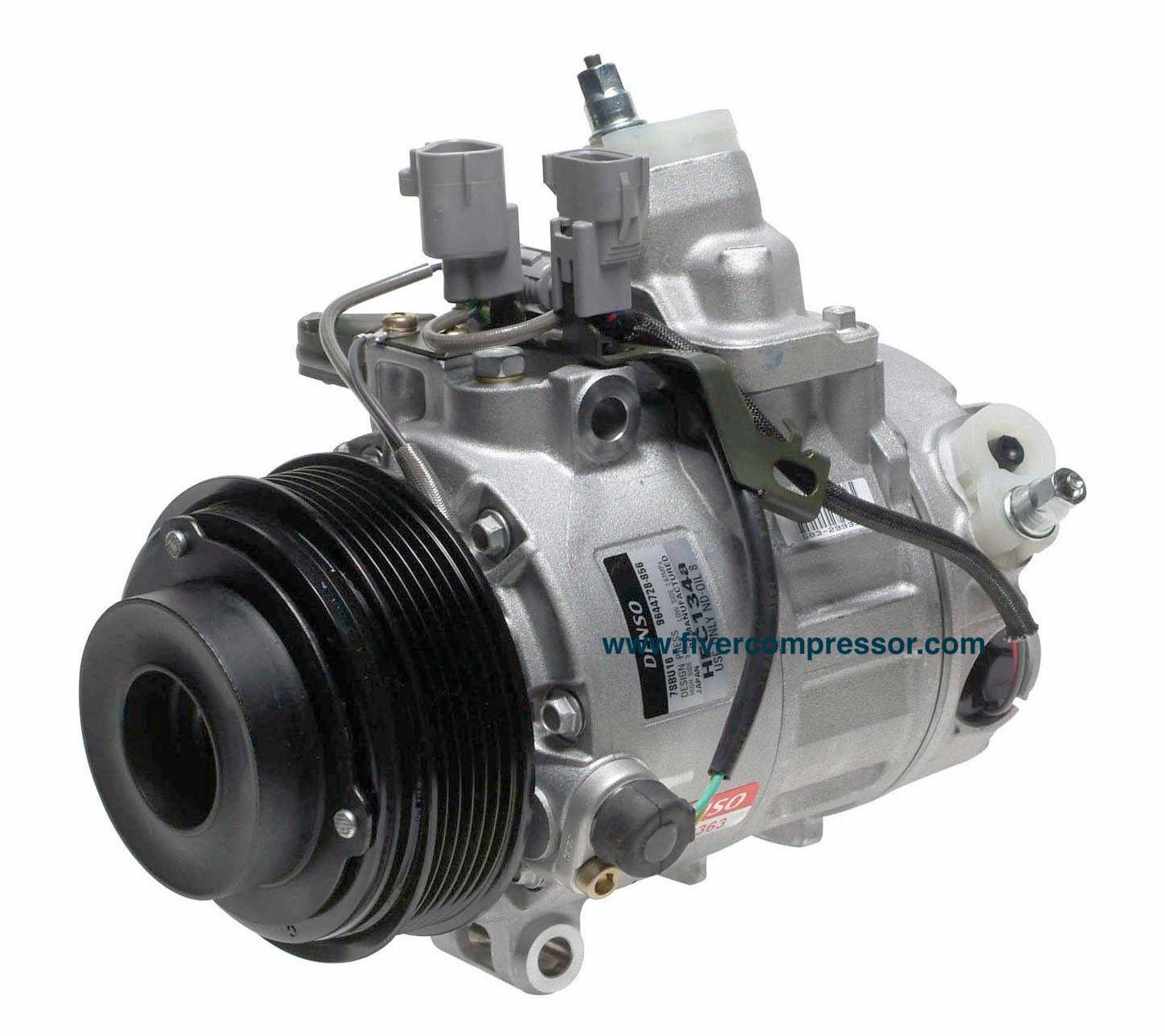

AC Compressor 8831050140, 8831050142, 8832050100, 8832050101, 8832050102 for Lexus RX430 (UCF30) Toyota Crown (UZS171/UZS173/UZS175) and Toyota Celsior (UCF30/UCF31)

OE / Part number
255575, 275707, 4471708550, 4471904580, 4472208567, 4472600760, 4472600820, 4710363, 8831050140, 8831050142, 8832050100, 8832050101, 8832050102

AC Compressor 8831050140, 8831050142, 8832050100, 8832050101, 8832050102 for Lexus RX430 (UCF30) Toyota Crown (UZS171/UZS173/UZS175) and Toyota Celsior (UCF30/UCF31) — aftermarket A/C compressor OE 255575 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor for Lexus LS430 UCF30 / AC Compressor for Toyota Crown UZS171 UZS173 UZS175 / ac compressor for Toyota Celsior UCF30 UCF31 / Auto A/C Compressor Supplier
OE / Part number255575, 275707, 4471708550, 4471904580, 4472208567, 4472600760, 4472600820, 4710363, 8831050140, 8831050142, 8832050100, 8832050101, 8832050102
ApplicationApplications: Lexus LS

§ 03

Product details

AC Compressor 8831050140, 8831050142, 8832050100, 8832050101, 8832050102 for Lexus RX430 (UCF30) Toyota Crown (UZS171/UZS173/UZS175) and Toyota Celsior (UCF30/UCF31)

Applications:

Lexus LS

UCF30L-AEAGKAYear 2000 - 2003

UCF30L-AEAGKKYear 2000 - 2003

UCF30L-AEAGKWYear 2000 - 2003

UCF30R-AEAGKQYear 2000 - 2003

UCF30R-AEAGKWYear 2000 - 2003

UCF30L-AEAGKWYear 2000 - 2003

UCF30R-AEAGKQYear 2000 - 2003

UCF30R-AEAGKWYear 2000 - 2003

TOYOTA

CROWN/MAJESTA

  • UZS171. UZS171-CEAZKYear 1999 - 2004
  • UZS173. UZS173-CEPZKYear 1999 - 2004
  • UZS175. UZS175-CEAQKYear 1999 - 2004
CELSIOR
  • UCF30. UCF30-AEAGKYear 2000 - 2003; UCF30-AEANKYear 2000 - 2003
  • UCF31. UCF31-AEAQKYear 2000 - 2003

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 115.0 MM
Compressor Mount Hole Quantity 3
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 255575, 275707, 4471708550, 4471904580, 4472208567, 4472600760, 4472600820, 4710363, 8831050140, 8831050142, 8832050100, 8832050101, 8832050102
