Toyota A/C compressor

AC Compressor 883103A441, 883103A560, 8832036530, 883203A280, 883203A310 for Lexus GS350(GRS195/GRS196) Lexus IS250(GSE25) and Toyota…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

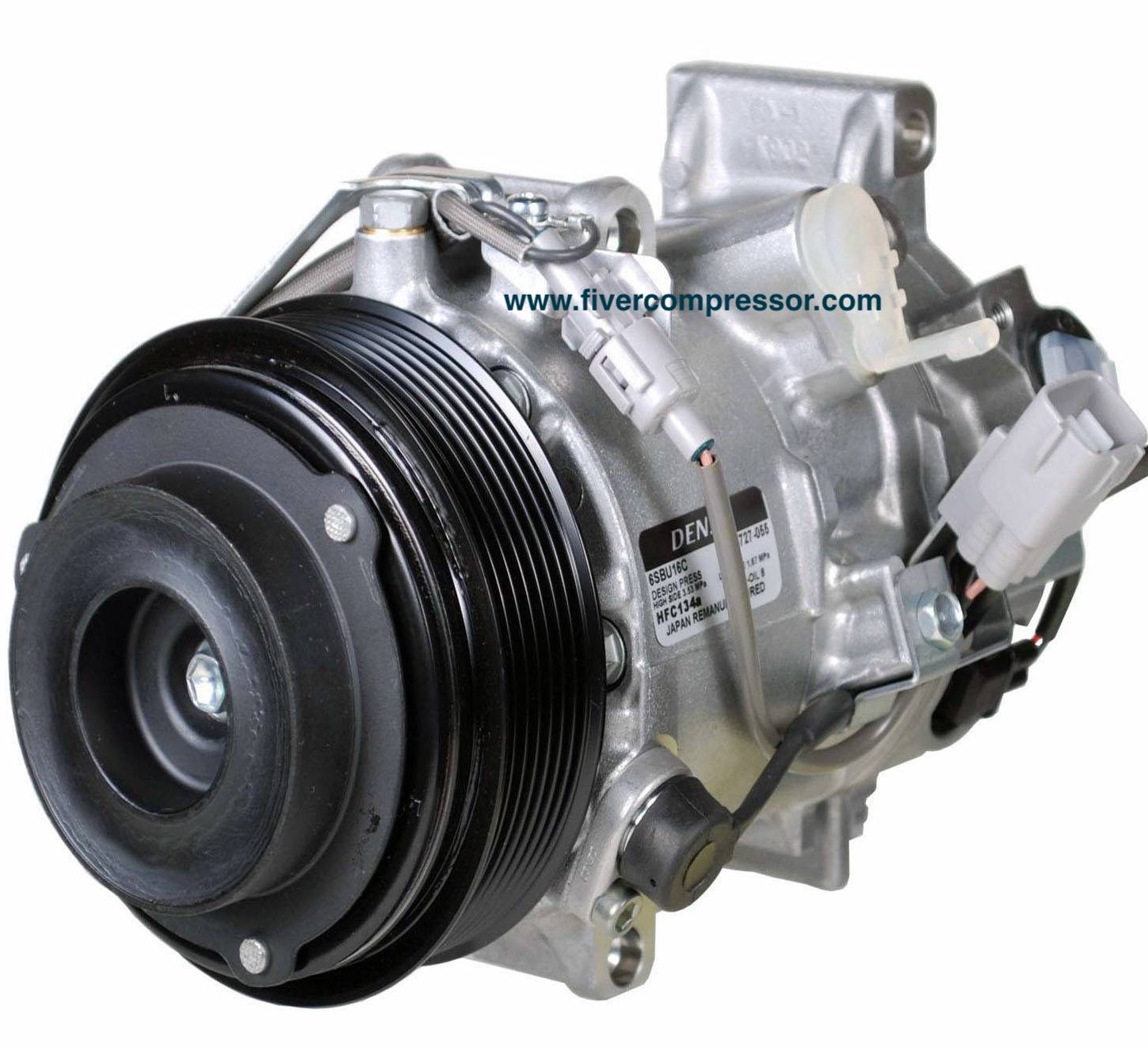

AC Compressor 883103A441, 883103A560, 8832036530, 883203A280, 883203A310 for Lexus GS350(GRS195/GRS196) Lexus IS250(GSE25) and Toyota Crown(GRS181/GRS183) 2003-2013

OE / Part number
275702, 4471600410, 4471600411, 4471903221, 4471907273, 4472600559, 4710566, 4710568, 883103A441, 883103A560, 8832036530, 883203A280, 883203A310

AC Compressor 883103A441, 883103A560, 8832036530, 883203A280, 883203A310 for Lexus GS350(GRS195/GRS196) Lexus IS250(GSE25) and Toyota Crown(GRS181/GRS183) 2003-2013

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor for Lexus GS350 GRS195/GRS196 / Lexus GS300 AC Compressor / AC Compressor for Toyota Crown (GRS181/GRS183) / AC Compressor for Toyota Majesta
OE / Part number275702, 4471600410, 4471600411, 4471903221, 4471907273, 4472600559, 4710566, 4710568, 883103A441, 883103A560, 8832036530, 883203A280, 883203A310
ApplicationApplications: Toyota

§ 03

Product details

AC Compressor 883103A441, 883103A560, 8832036530, 883203A280, 883203A310 for Lexus GS350(GRS195/GRS196) Lexus IS250(GSE25) and Toyota Crown(GRS181/GRS183) 2003-2013

Applications:

Toyota

CROWN/ MAJESTA

GRS181-AEASH Year 2004 - 2008

GRS181-AEAXH Year 2004 - 2008

GRS183-AETQHYear 2003 - 2008

MARK X

GRX125-AEAZHYear 2004 - 2009

LEXUSGS

GRS195L-BETQHA Year 2005 - 2006

GRS196-BETQH Year 2005 - 2011

Lexus IS

GSE25-AETLH Year 2005 - 2013

GSE25L-AETLHA Year 2005 - 2013

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 115.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 275702, 4471600410, 4471600411, 4471903221, 4471907273, 4472600559, 4710566, 4710568, 883103A441, 883103A560, 8832036530, 883203A280, 883203A310
