Toyota A/C compressor

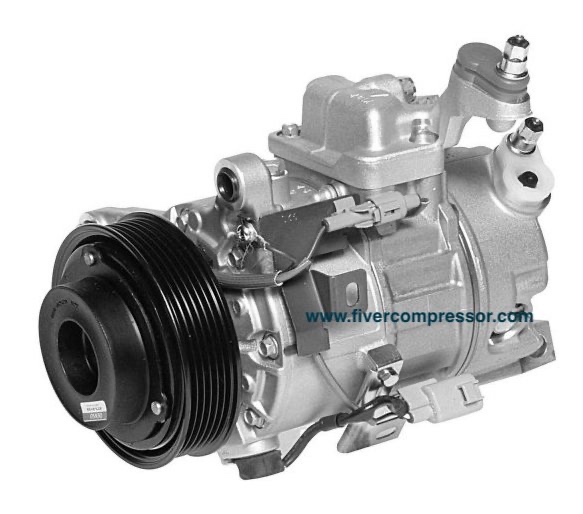

AC Compressor 883103A300, 883203A180, 883203A181 for Lexus GS300(JZS160) 1997-2005 and Toyota Aristo (JZS160/JZS161) 1997-2005
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

AC Compressor 883103A300, 883203A180, 883203A181 for Lexus GS300(JZS160) 1997-2005 and Toyota Aristo (JZS160/JZS161) 1997-2005

OE / Part number
254521, 275706, 4471703101, 4471708260, 4472208526, 4710221, 883103A300, 883203A180, 883203A181

AC Compressor 883103A300, 883203A180, 883203A181 for Lexus GS300(JZS160) 1997-2005 and Toyota Aristo (JZS160/JZS161) 1997-2005 — aftermarket A/C compressor OE 254521 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelAC Compressor for Lexus GS300 JZS160 / Lexus GS300 JZS160 AC Compressor / A/C Compressor for Toyota Aristo JZS160/JZS161 / Toyota Aristo JZS160/JZS161 AC Compressor
OE / Part number254521, 275706, 4471703101, 4471708260, 4472208526, 4710221, 883103A300, 883203A180, 883203A181
ApplicationApplications: Lexus GS300

§ 03

Product details

AC Compressor 883103A300, 883203A180, 883203A181 for Lexus GS300(JZS160) 1997-2005 and Toyota Aristo (JZS160/JZS161) 1997-2005

Applications:

Lexus GS300

JZS160L-BEAQFAYear 1997 - 2005

JZS160L-BEAQFWYear 1997 - 2005

JZS160R-BEAQFQYear 1997 - 2005

JZS160R-BEAQFWYear 1997 - 2005

JZS160L-BEAQFWYear 1997 - 2005

JZS160R-BEAQFQYear 1997 - 2005

JZS160R-BEAQFWYear 1997 - 2005

TOYOTA ARISTO

JZS160-BEAQFYear 2000 - 2005

JZS161-BEPVZYear 1997 - 2005

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 120.0 MM
Compressor Mount Hole Quantity 5
Pulley Belt Type Serpentine 6PK
Mounting Type Ear and Tangent
Alternate/OEM Part Number(s): 254521, 275706, 4471703101, 4471708260, 4472208526, 4710221, 883103A300, 883203A180, 883203A181
