FIVER AUTOPARTS CO.,LTD
Toyota A/C compressor
AC Compressor 8831035881, 883106A220, 8832035690, 8832035691, 883206A100, 883206A101, 883206A110, 883206A111 for Lexus GX470 (UZJ120) and Toyota 4Runner(UZN210/UZN215) 2002-2009
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

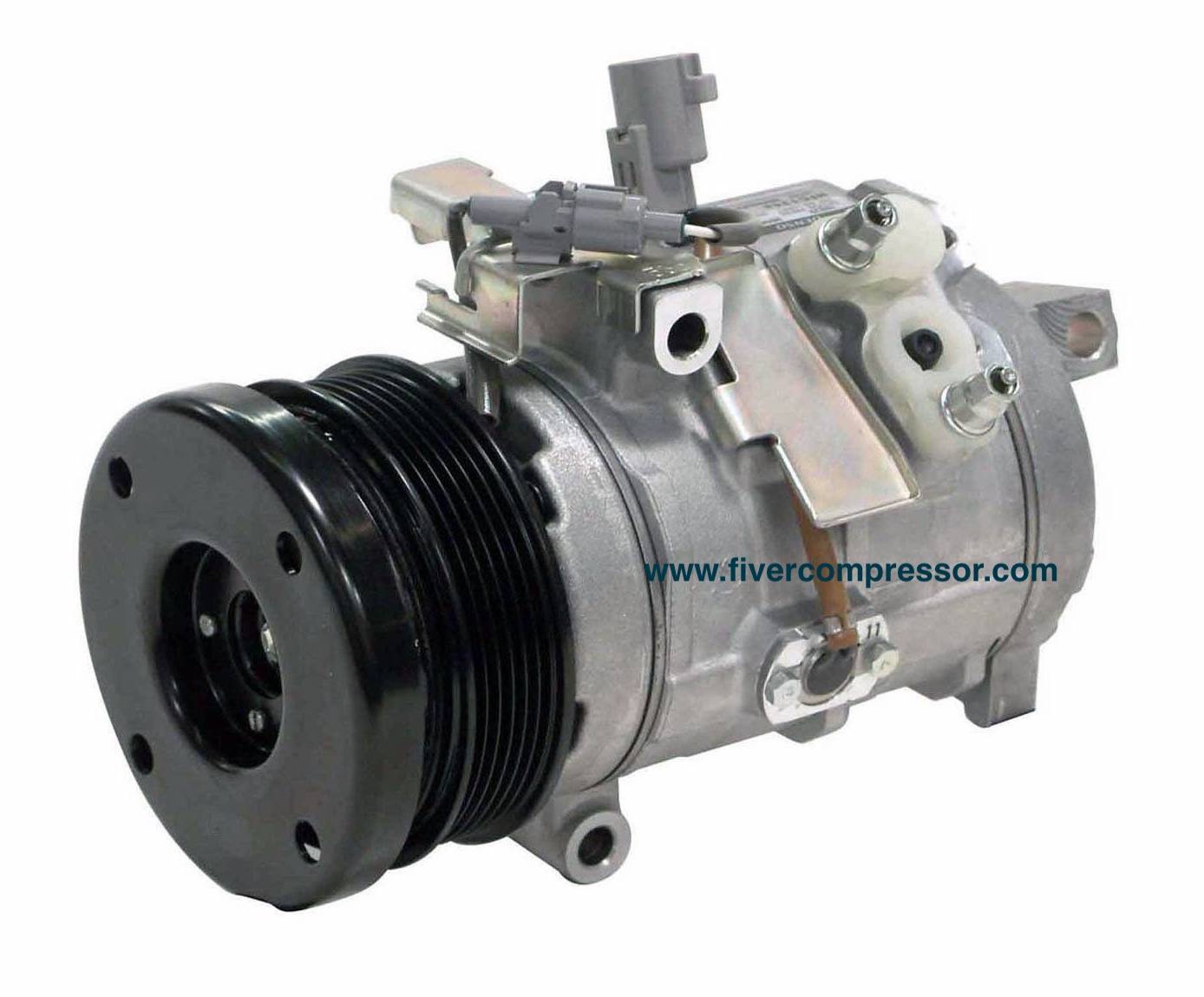

AC Compressor 8831035881, 883106A220, 8832035690, 8832035691, 883206A100, 883206A101, 883206A110, 883206A111 for Lexus GX470 (UZJ120) and Toyota 4Runner(UZN210/UZN215) 2002-2009

Applications:
LEXUS GX470
UZJ120L-GKAZKAYear 2002 - 2009
TOYOTA
HILUXSURF/ 4RUNNER
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 115.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine PV6 |
| Mounting Type | Bolt Tangent |
| Alternate/OEM Part Number(s): 252411, 275631, 4471805450, 4471904490, 4471904500, 4710412, 8831035881, 883106A220, 8832035690, 8832035691, 883206A100, 883206A101, 883206A110, 883206A111 |
§ 04
OE 88310-0R014, 883100R014
OE 88310-52720, 8831052720, 88310-0D400
OE 88310-52750, 8831052750
OE 88310-02850, 8831002850
