FIVER FIVER AUTOPARTS CO.,LTD — Chongqing

FIVER AUTOPARTS CO.,LTD

Toyota A/C compressor

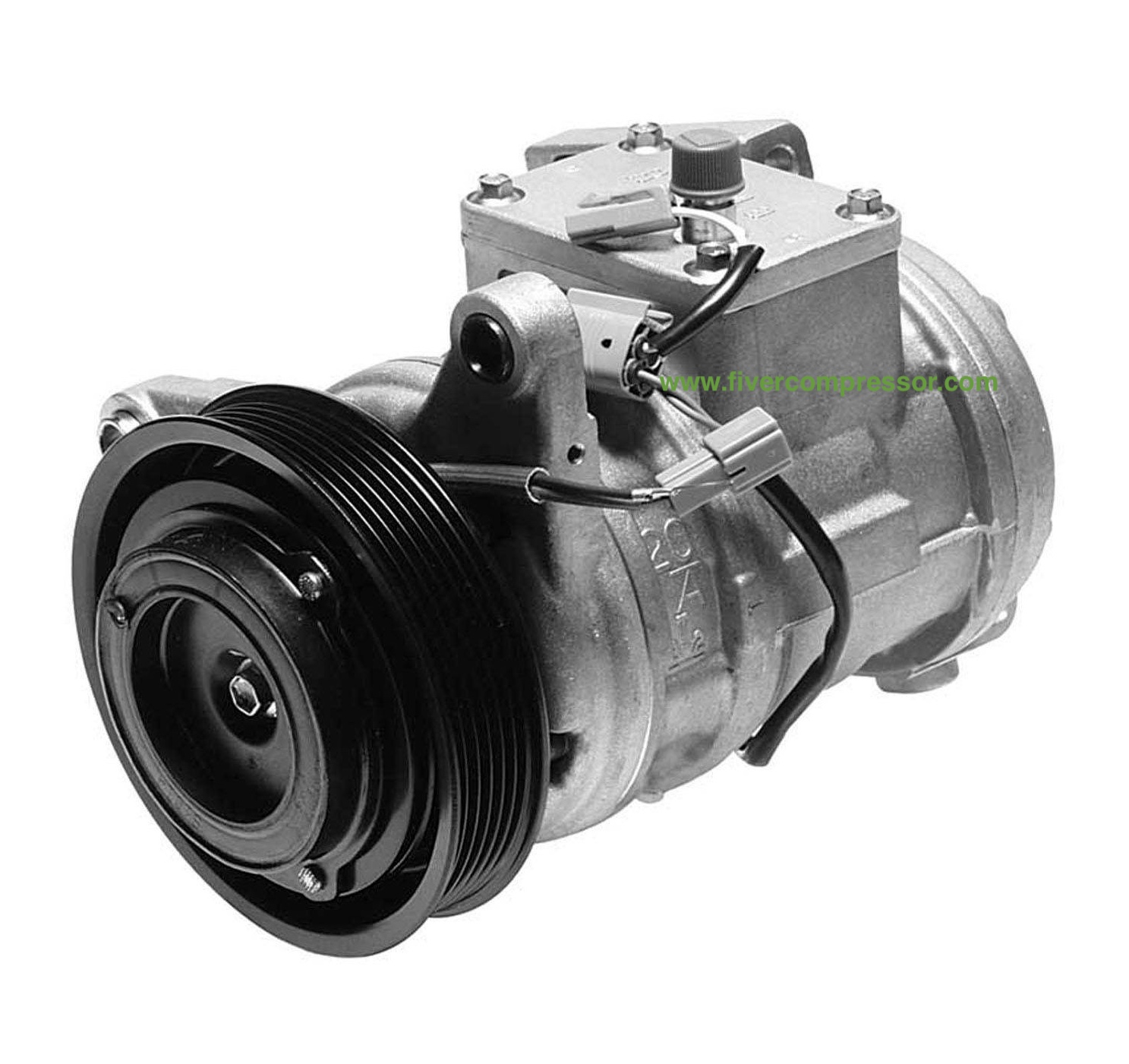

A/C Compressor 8831030811, 883103A141, 8832030651 for Lexus GS300 (JZS147) 3.0L V6 Toyota Crown 1993-1997
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor 8831030811, 883103A141, 8832030651 for Lexus GS300 (JZS147) 3.0L V6 Toyota Crown 1993-1997

OE / Part number
254465, 4471002900, 4471009390, 4710152, 4710153, 8831030811, 883103A141, 8832030651

A/C Compressor 8831030811, 883103A141, 8832030651 for Lexus GS300 (JZS147) 3.0L V6 Toyota Crown 1993-1997 both brand new and remanufactured ones available.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelA/C Compressor for Lexus GS300 JZS147 / Cooler for Lexus GS300 V6 3.0L / Air conditioning compressor for Toyota Crown / A/C Compressor for Toyota Aristo
OE / Part number254465, 4471002900, 4471009390, 4710152, 4710153, 8831030811, 883103A141, 8832030651
ApplicationApplications: Lexus GS

§ 03

Product details

A/C Compressor 8831030811, 883103A141, 8832030651 for Lexus GS300 (JZS147) 3.0L V6 Toyota Crown 1993-1997

Applications:

Lexus GS

JZS147L-BEAQFAYear 1995 - 1997

JZS147L-BEAQFKYear 1995 - 1997

JZS147L-BEPQFAYear 1993 - 1995

JZS147L-BEPQFKYear 1993 - 1995

JZS147L-BEPQFWYear 1993 - 1997

JZS147R-BEPQFWYear 1993 - 1997

Toyota

ARISTO

JZS147-BEPQFYear 1991 - 1997

JZS147-BEPVZYear 1991 - 1997

CROWN/ MAJESTA

JZS133-AEPQFYear 1991 - 1995

JZS133-AESQFYear 1991 - 1995

JZS133L-AEMGFYear 1991 - 1995

JZS133L-AEMQFYear 1993 - 1995

JZS133R-AEMGFYear 1995 - 2001

JZS133R-AEPGFYear 1991 - 1995

JZS133R-AEPQFYear 1991 - 2001

JZS143-ATAXFYear 1991 - 1995

JZS143-ATPQFYear 1991 - 1995

JZS147-ATPQFYear 1992 - 1995

JZS135-AEPUFYear 1991 - 1995

JZS135-AESUFYear 1991 - 1995

JZS145-ATPUFYear 1991 - 1995

JZS149-ATPQFYear 1991 - 1995

JZS149-ATPVFYear 1991 - 1995

Specifications;

Refrigerant TypeR134a
Clutch Maximum Diameter130.0 MM
Compressor Mount Hole Quantity5
Pulley Belt TypeSerpentine
Mounting TypeEar and Tangent
Alternate/OEM Part Number(s): 254465, 4471002900, 4471009390, 4710152, 4710153, 8831030811, 883103A141, 8832030651
