Toyota A/C compressor

AC Compressor 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300 for Lexus GS300 GRS190 Lexus GRS191, Lexus IS250…
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing

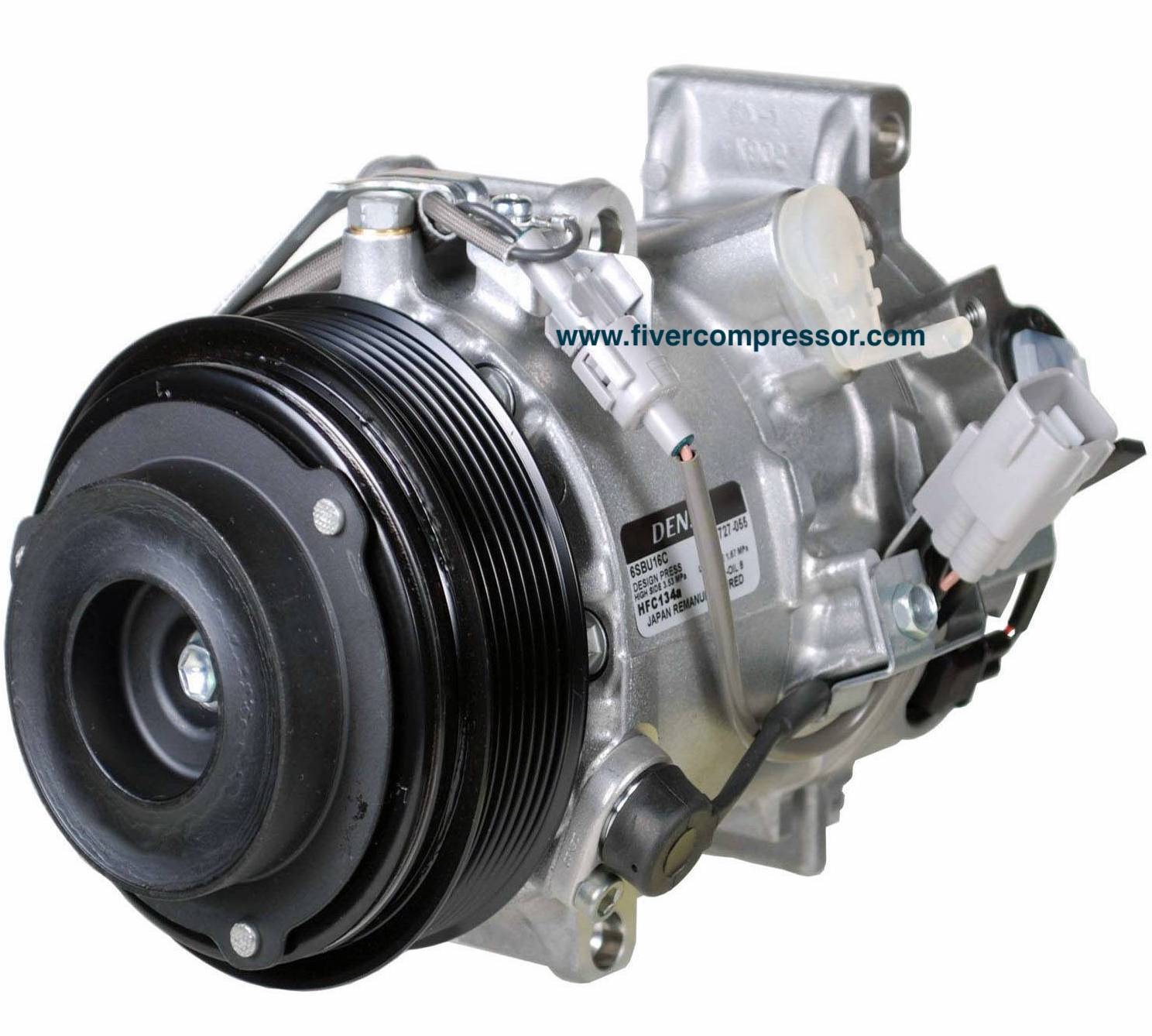

Toyota A/C compressor

AC Compressor 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300 for Lexus GS300 GRS190 Lexus GRS191, Lexus IS250 GSE20, IS300 GSE22; IS350 GSE21 and for Toyota REIZ GRX121,GRX122,

OE / Part number
275726, 4471600400, 4471600401, 4471903211, 4471907263, 4710567, 4710569, 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300

AC Compressor 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300 for Lexus GS300 GRS190 Lexus GRS191, Lexus IS250 GSE20, IS300 GSE22; IS350 GSE21 and for Toyota REIZ GRX121,GRX122, GRX131, GRX132

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelair conditioning compressor for Lexus GS350 / AC Compressor for Lexus IS300 / ac compressor for Toyota Reiz / AC Compressor for Toyota Majesta
OE / Part number275726, 4471600400, 4471600401, 4471903211, 4471907263, 4710567, 4710569, 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300
ApplicationApplications: Lexus

§ 03

Product details

AC Compressor 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300 for Lexus GS300 GRS190 Lexus GRS191, Lexus IS250 GSE20, IS300 GSE22; IS350 GSE21 and for Toyota REIZ GRX121,GRX122, GRX131, GRX132

Applications:

Lexus

LEXUS GS300 GRS190 FrameGRS190ENGINE3GRFE 2005-2011

LEXUS GS350 GRS191 FrameGRS191ENGINE2GRFSE 2005-2011

LEXUS IS250 GSE20 FrameGSE20bodySEDENGINE4GRFSE 2005-2015

LEXUS IS350 GSE21 FrameGSE21bodySEDENGINE2GRFSE 2005-2013

LEXUS IS300 GSE22. FrameGSE22bodySEDENGINE3GRF 2006-2014

TOYOTA

CROWN/MAJESTA

GRS180 FrameGRS180 bodySEDENGINE4GRFSE 2005-2008

GRS182 FrameGRS182 bodySEDENGINE3GRFSE 2003-2009

GRS184 FrameGRS184 bodySEDENGINE2GRFSE 2005-2008

GRS188 FrameGRS188 bodySEDENGINE5GRFE. 2005-2009

GRS200 FrameGRS200gradeROYENGINE4GRFSE 2008-2012

GRS202 FrameGRS202 ENGINE3GRFSE 2008-2015

GRS204 FrameGRS204 ENGINE2GRFSE 2008-2012

GRS208 FrameGRS208 ENGINE5GRFE 2009-2015

REIZ

GRX121 FrameGRX121bodySEDENGINE3GRFE. 2005-2010

GRX122 FrameGRX122bodySEDENGINE5GRFE. 2005-2010

GRX131 FrameGRX131body SEDENGINE3GRFE. 2010-2016

GRX132 FrameGRX132grade30VENGINE5GRFE. 2010-2018

Specifications:

Refrigerant Type R134a
Clutch Maximum Diameter 115.0 MM
Compressor Mount Hole Quantity 4
Pulley Belt Type Serpentine
Mounting Type Bolt Tangent
Alternate/OEM Part Number(s): 275726, 4471600400, 4471600401, 4471903211, 4471907263, 4710567, 4710569, 883100N010, 883100N030, 883103A431, 883103A550, 883203A270, 883203A300
