Toyota A/C compressor
AC Compressor 8831006050, 8831033030, 8831033110, 8832033030, 8832033120 for Lexus ES300 MCV10 Toyota Vista, Toyota Camry1993-1996
§ 01
A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.
Control valve
Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.
Drive pulley
Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.
Rotor and swash plate
Pistons run on an inclined swash plate; the inclination sets displacement.
Piston and cylinder
Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.
Suction port
Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.
Discharge port
High-pressure gas out to the condenser. Leak tested on every unit.
§ 02
§ 03

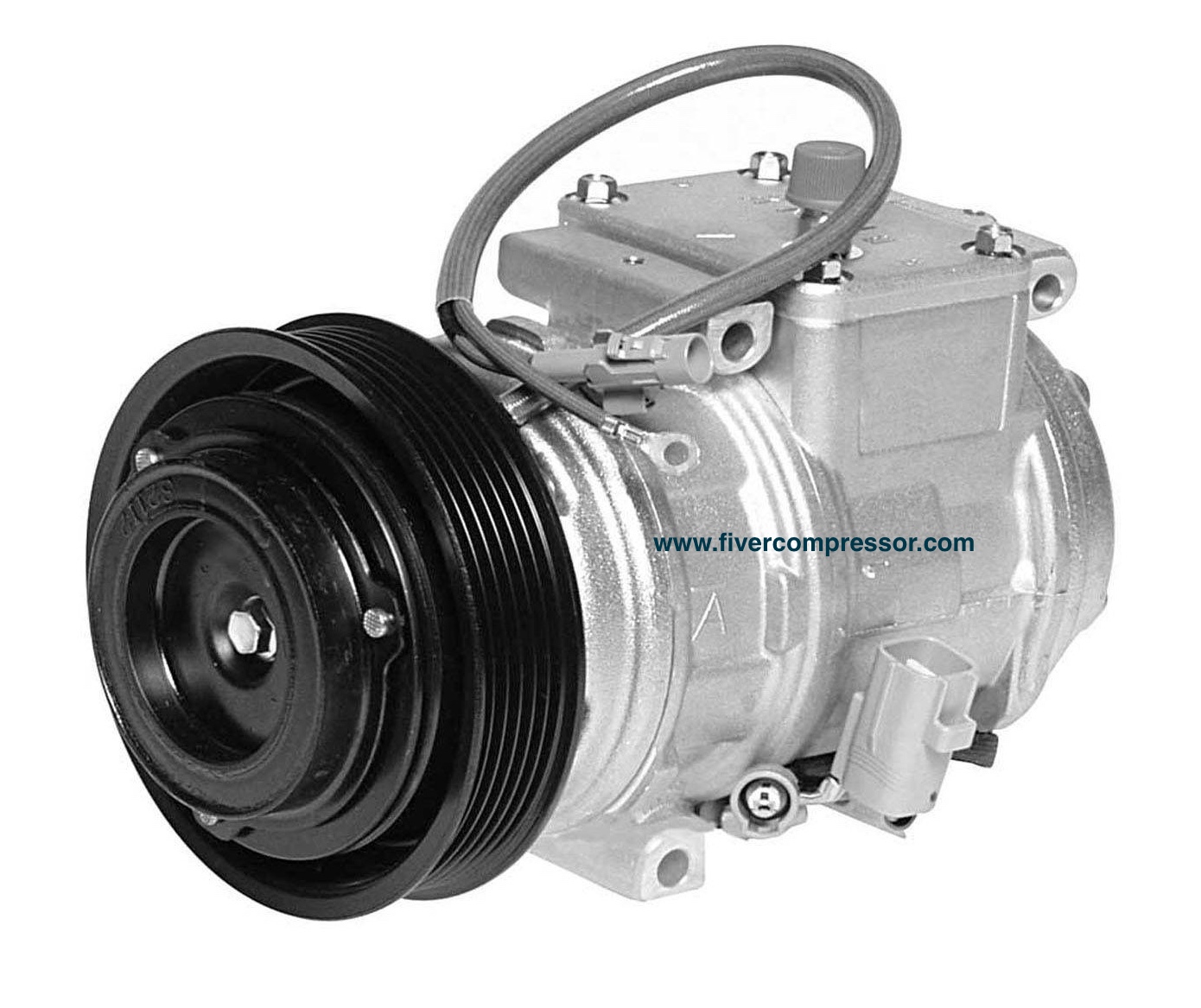

AC Compressor 8831006050, 8831033030, 8831033110, 8832033030, 8832033120 for Lexus ES300 MCV10 Toyota Vista, Toyota Camry1993-1996

Applications:
LEXUS ES300
MCV10L-BTPGKAYear 1993 - 1996
MCV10L-BTPGKKYear 1993 - 1996
TOYOTA
CAMRY/ VISTA/ AURION
MCV10L-AEPDKK Year 1993 - 1994
MCV10L-AEPGKA Year 1993 - 1996
MCV10L-AEPNKA Year 1993 - 1996
MCV10L-AEPNKK Year 1993 - 1994
MCV10L-AEPSKA Year 1993 - 1996
MCV10L-CCPNKA Year 1993 - 1996
MCV10L-CCPNKK Year 1993 - 1996
MCV10L-CCPSKA Year 1993 - 1996
MCV10L-CEPDKK Year 1994 - 1996
MCV10L-CEPGKA Year 1993 - 1996
MCV10L-CEPNKA Year 1993 - 1996
MCV10L-CEPNKK Year 1994 - 1996
MCV10L-CEPSKA Year 1993 - 1996
MCV10L-CWPNKA Year 1993 - 1996
MCV10L-CWPNKK Year 1993 - 1996
MCV10L-AEPDKK Year 1993 - 1994
MCV10L-AEPGKA Year 1993 - 1996
MCV10L-AEPNKA Year 1993 - 1996
MCV10L-AEPNKK Year 1993 - 1994
MCV10L-AEPSKA Year 1993 - 1996
MCV10L-CEPGKR Year 1993 - 1996
MCV10L-CEPSKR Year 1993 - 1994
Specifications:
| Refrigerant Type | R134a |
| Clutch Maximum Diameter | 130.0 MM |
| Compressor Mount Hole Quantity | 4 |
| Pulley Belt Type | Serpentine 6PV |
| Mounting Type | Bolt Tangent |
| Alternate/OEM Part Number(s): 254125, 254398, 274125, 275564, 4471003664, 4471009901, 4710312, 8831006050, 8831033030, 8831033110, 8832033030, 8832033120 |
