Toyota A/C compressor

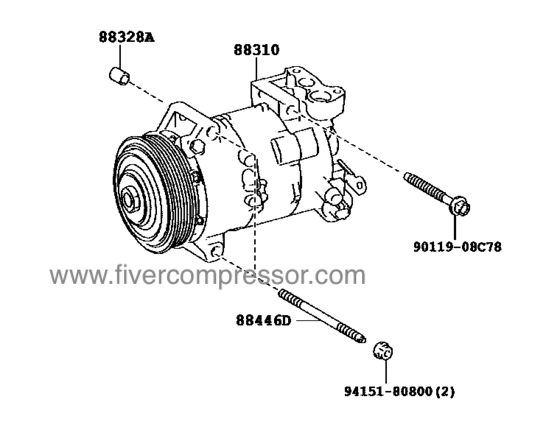

A/C Compressor 88310-42520, 8831042520 RAV4/VANGUARD WWA42 2015-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor 88310-42520, 8831042520 RAV4/VANGUARD WWA42 2015-2018

OE / Part number
88310-42520, 8831042520

Brand new Automobile A/C Compressor OE No.: 88310-42520, 8831042520 Product Name:A/C Compressor Applications:RAV4/VANGUARD WWA42 2015-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / RAV4 A/C Compressor / VANGUARD A/C CompressorANGUARD A/C CompressorERSO A/C Compressor
OE / Part number88310-42520, 8831042520
ApplicationApplications: RAV4/VANGUARD

§ 03

Product details

OE No.: 88310-42520, 8831042520
Product Name:A/C Compressor
Applications:RAV4/VANGUARD
WWA42 2015-2018


WWA42L-ANFGRW
Year 2015 - 2018
Sales region Europe Frame WWA42 ENGINE 2WW TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 10.2015 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction DCRE Grade Mark G
WWA42L-ANFMRW
Year 2015 - 2018
Sales region Europe Frame WWA42 ENGINE 2WW TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 10.2015 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction DCRE Grade Mark M
WWA42L-ANFXRW
Year 2015 - 2018
Sales region Europe Frame WWA42 ENGINE 2WW TRANSMISSION MTM PRODUCT JPP DESTINATION EUR Model RAV4 From 10.2015 Gear Shift Type 6F Vehicle Model RAV4 Driver's Position LHD Fuel Induction DCRE Grade Mark X
