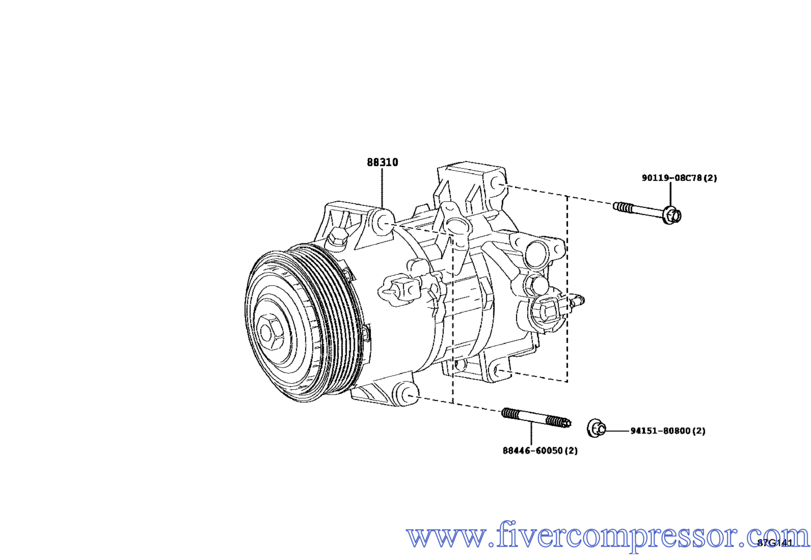

A/C Compressor 88310-10630, 8831010630 C-HR NGX10 2016-2018; NGX50 2016-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Products A/C compressor

A/C Compressor 88310-10630, 8831010630 C-HR NGX10 2016-2018; NGX50 2016-2018

OE / Part number
88310-10630, 8831010630

Brand new Automobile A/C Compressor OE No.: 88310-10630, 8831010630 Product Name:A/C Compressor Applications:C-HR NGX10 2016-2018 NGX50 2016-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / AUTO A/C compressor / C-HR A/C Compressor
OE / Part number88310-10630, 8831010630
ApplicationApplications: C-HR NGX10 2016-2018

§ 03

Product details

OE No.: 88310-10630, 8831010630
Product Name:A/C Compressor
Applications:C-HR NGX10 2016-2018
NGX50 2016-2018

NGX10R-AHFEXQ
Year 2016 - 2018
Sales region General Frame NGX10 grade LUX ENGINE 8NRFTS TRANSMISSION MTM DESTINATION ARL From 12.2016 Gear Shift Type 6F No.of Doors 5D Driver's Position RHD
NGX10R-AHFNXQ
Year 2016 - 2018
Sales region General Frame NGX10 grade ACTV ENGINE 8NRFTS TRANSMISSION MTM DESTINATION ARL From 12.2016 Gear Shift Type 6F No.of Doors 5D Driver's Position RHD
NGX10R-AHXEXQ
Year 2016 - 2018
Sales region General Frame NGX10 grade LUX ENGINE 8NRFTS TRANSMISSION CVT DESTINATION ARL From 12.2016 No.of Doors 5D Driver's Position RHD
NGX10R-AHXNXQ
Year 2016 - 2018
Sales region General Frame NGX10 grade ACTV ENGINE 8NRFTS TRANSMISSION CVT DESTINATION ARL From 12.2016 No.of Doors 5D Driver's Position RHD
NGX50-AHXEX
Year 2016 - 2018
Sales region Japan Frame NGX50 grade GT ENGINE 8NRFTS TRANSMISSION CVT From 12.2016 No.of Doors 5D
NGX50-AHXNX
Year 2016 - 2018
Sales region Japan Frame NGX50 grade ST ENGINE 8NRFTS TRANSMISSION CVT From 12.2016 No.of Doors 5D
NGX50R-AHXEXQ
Year 2016 - 2018
Sales region General Frame NGX50 grade LUX ENGINE 8NRFTS TRANSMISSION CVT DESTINATION ARL From 12.2016 No.of Doors 5D Driver's Position RHD
NGX50R-AHXNXQ
Year 2016 - 2018
Sales region General Frame NGX50 grade ACTV ENGINE 8NRFTS TRANSMISSION CVT DESTINATION ARL From 12.2016 No.of Doors 5D Driver's Position RHD
