Toyota A/C compressor

A/C Compressor 88310-02A02, 8831002A02 COROLLA ALTIS ZRE171 2013-2018; ZRE172 2013-2018; ZRE173 2013-2018; SIENTA ZSP170 2016-2018
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor 88310-02A02, 8831002A02 COROLLA ALTIS ZRE171 2013-2018; ZRE172 2013-2018; ZRE173 2013-2018; SIENTA ZSP170 2016-2018

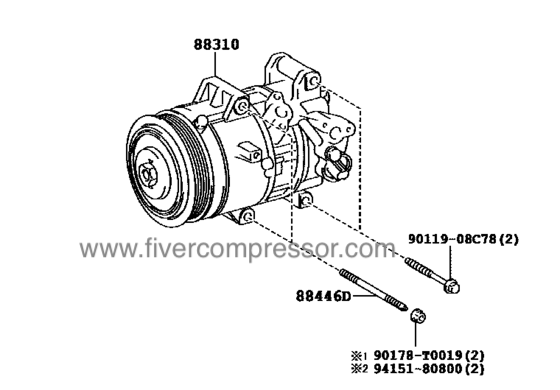

OE / Part number
88310-02A02, 8831002A02

Remanufactured A/C Compressor for car OE No.: 88310-02A02, 8831002A02 Product Name:A/C Compressor Applications:COROLLA ALTIS ZRE171 2013-2018 ZRE172 2013-2018 ZRE173 2013-2018 SIENTA ZSP170 2016-2018

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / COROLLA A/C Compressor / SIENTA A/C Compressor / AlTIS A/C Compressor
OE / Part number88310-02A02, 8831002A02
ApplicationApplications: COROLLA ALTIS

§ 03

Product details

OE No.: 88310-02A02, 8831002A02
Product Name:A/C Compressor
Applications:COROLLA ALTIS

ZRE171 2013-2018
ZRE172 2013-2018
ZRE173 2013-2018
SIENTA ZSP170 2016-2018

ZRE171L-GEFDKV
Year 2013 - 2018
Sales region General Frame ZRE171 grade XLI body SED ENGINE 1ZRFE TRANSMISSION MTM DESTINATION GCC From 10.2013 Gear Shift Type 6F No.of Doors 4D Driver's Position LHD Fuel Induction HTWC
ZRE171L-GEXDKV
Year 2015 - 2018
Sales region General Frame ZRE171 grade XLI body SED ENGINE 1ZRFE TRANSMISSION CVT DESTINATION GCC From 11.2015 No.of Doors 4D Driver's Position LHD Fuel Induction HTWC
ZRE171L-GEXNKV
Year 2015 - 2018
Sales region General Frame ZRE171 grade GLI body SED ENGINE 1ZRFE TRANSMISSION CVT DESTINATION GCC From 11.2015 No.of Doors 4D Driver's Position LHD Fuel Induction HTWC ZRE172L-GEXDKR
Year 2013 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION CVT DESTINATION TAIW From 10.2013 No.of Doors 4D Model Mark D Driver's Position LHD Fuel Induction HTWC
ZRE172L-GEXEKR
Year 2013 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION CVT DESTINATION TAIW From 10.2013 No.of Doors 4D Model Mark E Driver's Position LHD Fuel Induction HTWC
ZRE172L-GEXGKR
Year 2013 - 2018
Sales region General Frame ZRE172 body SED ENGINE 2ZRFE TRANSMISSION CVT DESTINATION TAIW From 10.2013 No.of Doors 4D Model Mark G Driver's Position LHD Fuel Induction HTWCZRE173L-GEXDKV
Year 2015 - 2018
Sales region General Frame ZRE173 grade XLI body SED ENGINE 3ZRFE TRANSMISSION CVT DESTINATION GCC From 11.2015 No.of Doors 4D Driver's Position LHD Fuel Induction HTWC
ZRE173L-GEXNKV
Year 2015 - 2018
Sales region General Frame ZRE173 grade GLI body SED ENGINE 3ZRFE TRANSMISSION CVT DESTINATION GCC From 11.2015 No.of Doors 4D Driver's Position LHD Fuel Induction HTWCZSP170L-MNXNPR
Year 2016 - 2018
Sales region General Frame ZSP170 grade E body WG ENGINE 2ZRFAE TRANSMISSION CVT From 11.2016 Seating Capacity 05S Vehicle Model SIENTA Driver's Position LHD Fuel Induction HTWVM
ZSP170L-MNXQPR
Year 2016 - 2018
Sales region General Frame ZSP170 grade G body WG ENGINE 2ZRFAE TRANSMISSION CVT From 11.2016 Seating Capacity 05S Vehicle Model SIENTA Driver's Position LHD Fuel Induction HTWVM
ZSP170L-MWXNPR
Year 2016 - 2018
Sales region General Frame ZSP170 grade E body WG ENGINE 2ZRFAE TRANSMISSION CVT From 11.2016 Seating Capacity 07S Vehicle Model SIENTA Driver's Position LHD Fuel Induction HTWVM
ZSP170L-MWXQPR
Year 2016 - 2018
Sales region General Frame ZSP170 grade G body WG ENGINE 2ZRFAE TRANSMISSION CVT From 11.2016 Seating Capacity 07S Vehicle Model SIENTA Driver's Position LHD Fuel Induction HTWVM
ZSP170L-MWXUPR
Year 2016 - 2018
Sales region General Frame ZSP170 grade GOPT body WG ENGINE 2ZRFAE TRANSMISSION CVT From 11.2016 Seating Capacity 07S Vehicle Model SIENTA Driver's Position LHD Fuel Induction HTWVM
