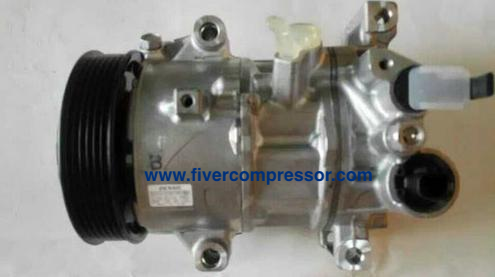

Toyota A/C compressor

A/C Compressor88310-02790, 8831002790 AURIS/ COROLLA AVENSIS COROLLA
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

A/C Compressor88310-02790, 8831002790 AURIS/ COROLLA AVENSIS COROLLA

OE / Part number
88310-02790, 8831002790

A/C Compressor88310-02790, 8831002790 AURIS/ COROLLA AVENSIS COROLLA — aftermarket A/C compressor OE 88310-02790 supplied by FIVER AUTOPARTS CO.,LTD. Send an inquiry for price and availability.

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C compressor / COROLLA A/C Compressor / AVENSIS A/C Compressor / AURIS A/C Compressor
OE / Part number88310-02790, 8831002790
ApplicationApplications: AURIS/ COROLLA ZRE181 2012-2018

§ 03

Product details

OE No.:88310-02790, 8831002790
Product Name:A/C Compressor
Applications:AURIS/ COROLLA ZRE181 2012-2018
ZRE185 2012-2018

AVENSIS

ZRT270 2008-2018
ZRT271 2008-2018
ZRT272 2008-2018

COROLLA

ZRE181 2013-2018
ZRE182 2016-2018

Compressor Info:

tem No : WX-10071
Car Name : COROLLA 1.6 / Auris 1.6i
TYPE : 6SES14C
Year model: 2013- 2014
OEM No : 88310-02790/447280-6571
Clutch information: 120mm 6PK ELECTRONIC CONTROL VALVE

Oil type : 1234YF
Oil Quantity : 130ml

§ 04
