Toyota A/C compressor

A/C Compressor 447260-2333/447260-2334 for Yaris/Auris/Vitz/Belta/Ractis/Echo 1.0i/1.3i
Compressor assembly line, Chongqing
PRODUCTION PLATECompressor assembly line, Chongqing
Toyota A/C compressor

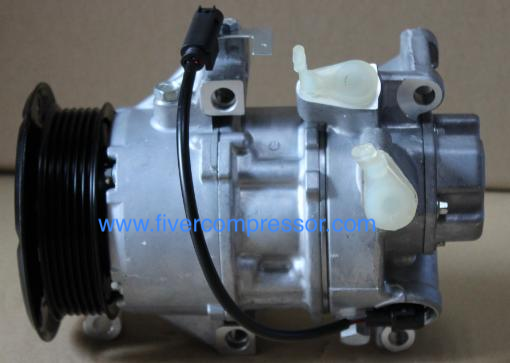

A/C Compressor 447260-2333/447260-2334 for Yaris/Auris/Vitz/Belta/Ractis/Echo 1.0i/1.3i

AC Compressor 447260-2333 447260-2334 for Yaris Auris Vitz Belta Ractis Echo

What arrives with every unit

  • TRACEProduction record filed against the order line.
  • TESTVacuum, pressure, noise and performance checked before packing.
  • SHIPExport packing with the packing list in the box.
  • SUPPORTApplication engineering available for fitment questions.

§ 01

Inside the compressor

A sectional drawing of a swash-plate compressor, with the six features that decide whether it holds pressure.

1 2 3 4 5 6
1

Control valve

Varies the swash-plate stroke to hold low-side suction pressure steady under changing load.

2

Drive pulley

Poly-V pulley driven from the engine belt; belt tension and alignment decide clutch life.

3

Rotor and swash plate

Pistons run on an inclined swash plate; the inclination sets displacement.

4

Piston and cylinder

Hardened, honed bores sized against the rotor so the swept volume stays on the drawing.

5

Suction port

Low-pressure refrigerant in. Pressure is verified against the test curve before the unit ships.

6

Discharge port

High-pressure gas out to the condenser. Leak tested on every unit.

§ 02

Data sheet

modelTOYOTA A/C Compressor / YARIS A/C Compressor / BELTA A/C Compressor / AURIS A/C Compressor
ApplicationApplications: Yaris Auris Vitz Belta Ractis Echo

§ 03

Product details

:

Part Name: A/C Compressor Assy

OE/ Cross Reference: 447260-2333/447260-2334

Applications: Yaris Auris Vitz Belta Ractis Echo

Compressor Info:

Item No : WX-10008
Car Name : Yaris/Auris/Vitz/Belta/Ractis/Echo 1.0i/1.3i
TYPE : 5SE09C
Year model: 2005-2010
OEM No : 447260-2333/447260-2334
Clutch information : 100mm 6PK ELECTRONIC CONTROL VALVE

Oil type : PAG 46
Oil Quantity : 85ml
